RCC Logic controller without display. 8 digital DC inputs, 8 digital outputs
Description:

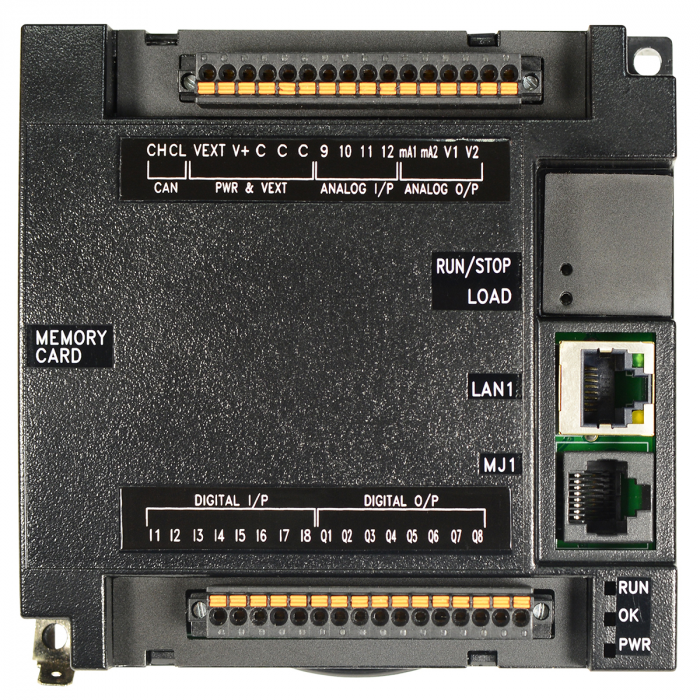

The Horner HE-RCC8842 is a compact, screen-less automation controller that integrates control, I/O, and networking into one rugged package. It supports advanced IEC 61131-3 programming languages, offers built-in digital and analog I/O, and provides flexible connectivity options including Ethernet, serial ports, and CAN networking. Designed for distributed control applications, the RCC8842 is DIN-rail mountable and ideal for space-saving industrial automation solutions.
Specifications:
- Power Supply: 10–32 VDC (steady state 120 mA @ 24 VDC; inrush 25 A for 1 ms)
- Logic Memory: 2 MB; supports advanced ladder logic & IEC 61131-3 languages
- Scan Rate: 0.04 ms/kB
- Digital I/O: 8 digital inputs, 8 digital outputs (max 2048 each)
- Analog I/O: 4 analog inputs, 2 analog outputs (max 512 each)
- Networking: Standard Ethernet (10/100), CsCAN, RS-232, RS-485
- Remote Access: WebMI, HTTP, EnvisionRV support
- Real-Time Clock: Yes, accuracy ±8 seconds/month at 25 °C
- PID Control: Up to 6 loops supported
- Mounting: 35 mm DIN rail or panel surface
- Terminal Type: Spring clamp, removable
- Housing: UL 50 rated plastic, flame-retardant, UV resistant
- Operating Temperature: -10 °C to +60 °C
- Storage Temperature: -10 °C to +60 °C
- Relative Humidity: 5–95% non-condensing
| SKU | HE-RCC8842 |
|---|---|
| Brand | Horner |
