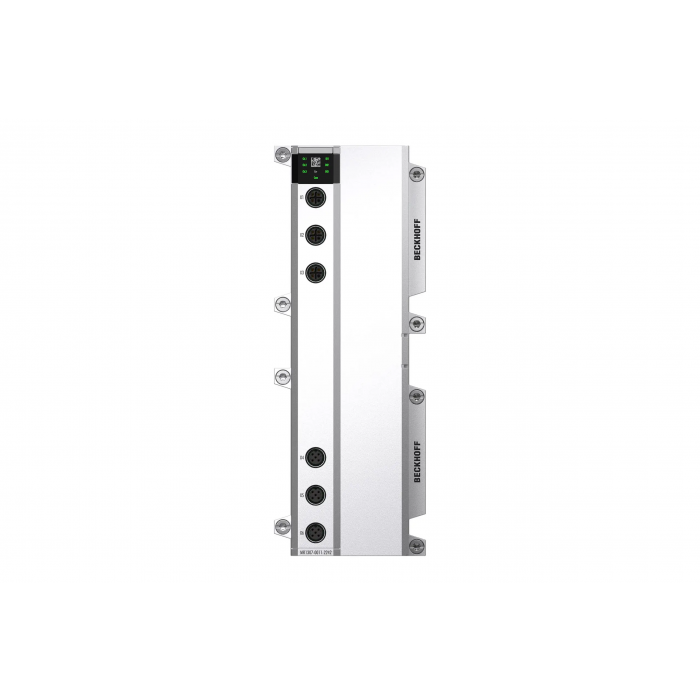

Relay module MR1307-0011-2242
The MR1307-0011-2242 is a 3-phase relay output including load current measurement. The load currents are output via three separate M12 connectors, each of which can switch up to 10 A max. and must not exceed 15 A in total.
Product category: relay modules
Category/version: relay output
Channels: 3
Output voltage: 230/400 V AC 3~
Output current: 7 A per channel (∑ 15 A)
Connection method: M12
Shutdown: yes
Resolution: 16 bit
Output: 3 kVA per channel
Residual current measurement: no
Change of rotation direction: no
Supply voltage from backplane: 400…480 V AC
Load type: ohmic, inductive
Load current measurement: yes
Measuring error: I: 1.25 % referred to the measuring range end value
Number of phases: 3
Sensor types: RTD/TC
Fuse: replaceable
Additional in-/outputs: 3
Baseplate interface: data and power connector
Diagnostics: open-circuit detection, undervoltage
Distributed clocks: yes
Hot swap: yes
TwinCAT version: TwinCAT 3
Weight: 2000 g
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 70 mm × 240 mm × 112 mm
Number of rows: 2
Number of slots: 2
Material: zinc and aluminum die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
