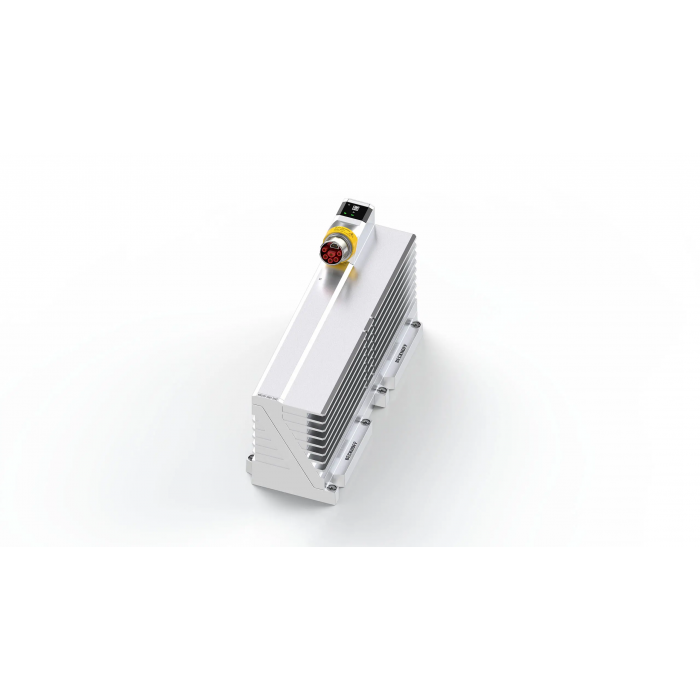

Relay module MR3107-2001-2245

Product category: relay modules Category/version: motor reversing starter Channels: 1 Output voltage: 230/400 V AC 3~ Output current: 7 A per channel Connection method: B23 Shutdown: yes Resolution: 16 bit Output: 3 kVA per channel Residual current measurement: no Change of rotation direction: yes Supply voltage from backplane: 400…480 V AC Load type: ohmic, inductive Load current measurement: yes Measuring error: I: 1.25 % referred to the measuring range end value Number of phases: 3 Fuse: replaceable Baseplate interface: data and power connector Diagnostics: open-circuit detection, undervoltage Distributed clocks: yes Hot swap: yes TwinCAT version: TwinCAT 3 Weight: 2200 g Approvals/markings: CE, (UL in preparation) Dimensions (W x H x D): 70 mm × 240 mm × 112 mm Number of rows: 2 Number of slots: 2 Material: zinc and aluminum die-cast Cooling: convection Operating/storage temperature: 0…+50 °C/-25…+85 °C Protect. rating/installation pos.: IP65/67/variable
