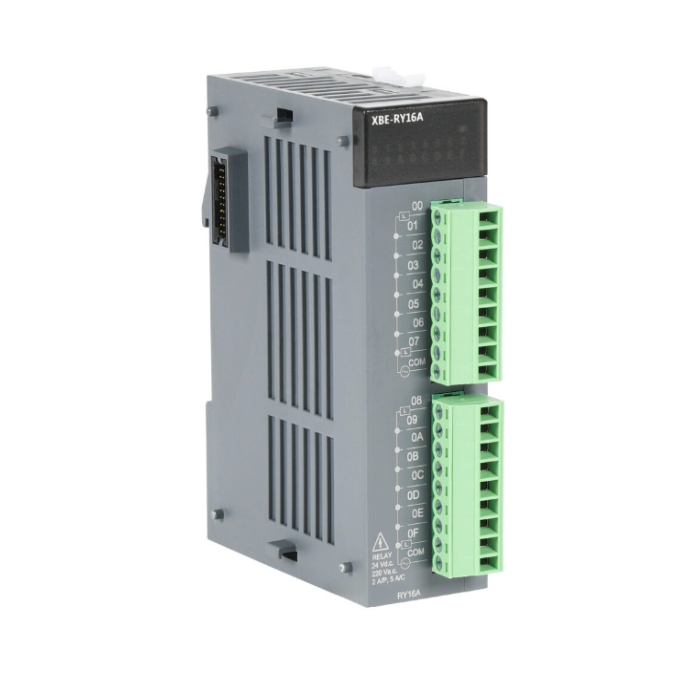

XGB Digital Relay Output Module, 16 points, 420mA
Description:
- The 8-point, 16-point, and 32-point output modules make up the digital output, which is easily repaired with a terminal one-touch connection.
- It offers a sort of relay and transistor.
Specifications:
- Output point: 16 points.
- Insulation method: Relay insulation.
- Rated input voltage/Current: DC 24V 2A (resistive load)/AC 220V 2A (COSψ = 1), 5A /COM.
- Min. load voltage/Current: DC 5V 1mA.
- Max. load voltage: AC 250V, DC 125V.
- Off leakage current: 0.1mA (AC 220V, 60Hz).
- Max. on/Off frequency: 3,600 times / hr.
- Surge absorber: None.
- Response time:
- Off → On: 10ms or less.
- On → Off: 12ms or less.
- COMMON method: 8 points / 1COM.
- Internal current consumption: 420mA.
- Operation indicator: Output On, LED On.
- External connection method: 9-pin terminal block connector x 2.
- Rated load voltage/Current 100,000 times or more.
Service life:
- Mechanical: 20million times or more.
- Electrical:
- AC 200V/1.5A, AC 240V/1A (COSψ = 0.7) 100,000 times or more.
- AC 200V/1A, AC 240V/0.5 (COSψ = 0.35) 100,000 tiems or more.
- DC 24V/1A, DC 100V/0.1A (L / R = 7ms) 100,000 times or more.
| Brand | LS Electric |
|---|
