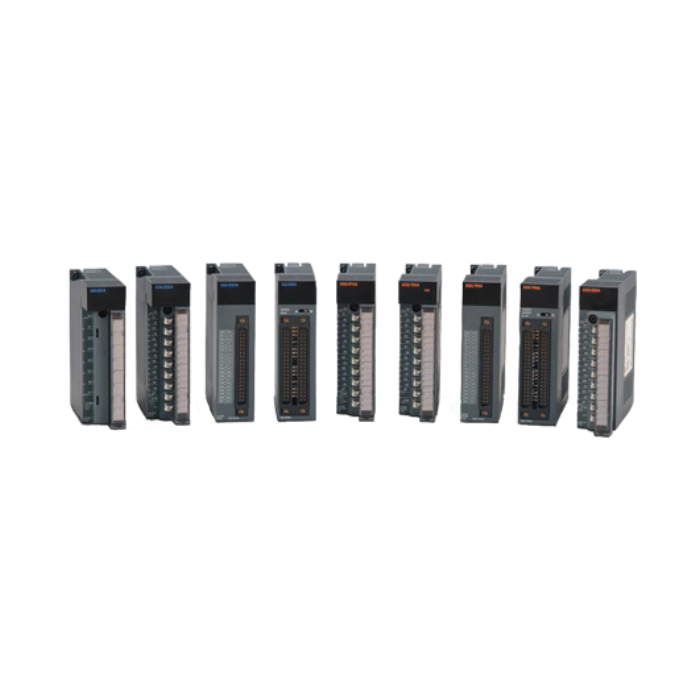

Relay Output 16 points (AC 240V DC24V 2A)
Features:
- I/O Module with 8, 16, 32, and 64 points.
- Operation tracking with an LED panel.
- One-touch module installation and terminal block types make maintenance simple.
Output Module Specifications:
- Output point: 16.
- Rated input Voltage: DC 12/24V, AC 110/220V
- 1 Point Rated Input Current: 2A.
- Common Rated input current: 5A
- Response time: off-on: 10ms or less
- On-off: 12ms or less
- Common (COM): 16 Point
- Insulation method: Relay
- Current consumption (Ma): 500
| Brand | LS Electric |
|---|
