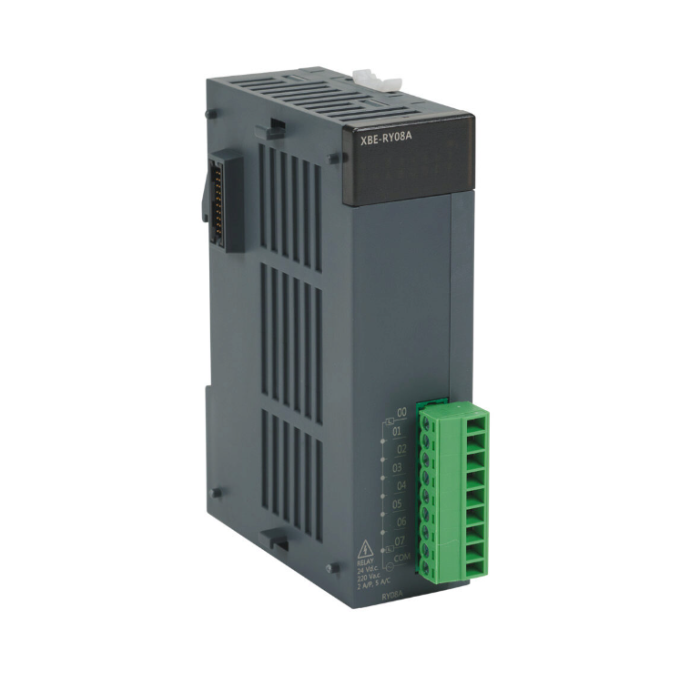

Relay output 8 points 1 x Plug-in Screw-Terminal connection 1 x common
Features:
- Extended digital and analog I/O from the XGB series is compatible with the PLC system of the extended smart I/O adapter XEL-BSSRx.
- XGB extension I/O number that is available: 8.
- Modbus TCP/IP, RAPIEnet, and other net/IP protocols are supported.
- Allows for a maximum media speed of 1 Gbps for mixed, optical, and electric modules.
- For every optical, mixed, and electric module, there are two ports for media support.
- Support for setting up ring and line topologies using the relay function without the need for extra switches.
- When increasing the ring structure, one line can be operated without making any mistakes.
- Provide diagnostics for the service status.
Specifications:
- Input Points: 8 Point
- Insulation Method: Relay insulation
- Rated Load Voltage / Current: 24V 2A (R load) / 220V 2A (COS0 =1) 5A / COM
- Min. Load Voltage / Current: DC 5V / 1mA
- Max. Load Voltage: AC 250V DC 125V
- Common Method: 8 Point / COM
- Internal Current Consumption: 230mA
- External Connection Method: 9 pin terminal block connector / 8 Point
- Off Leakage Current: 0.1mA (220VAC, 60Hz)
- Max. On/Off Frequency: 3,600 times/hr.
- Response Time: Off → On 10ms or less, On → Off 12ms or less
- Service Life Mechanical: 20 million Times or More
- DIGITAL EXPANSION I/O for XEC XEM PLCs
| Brand | LS Electric |
|---|
