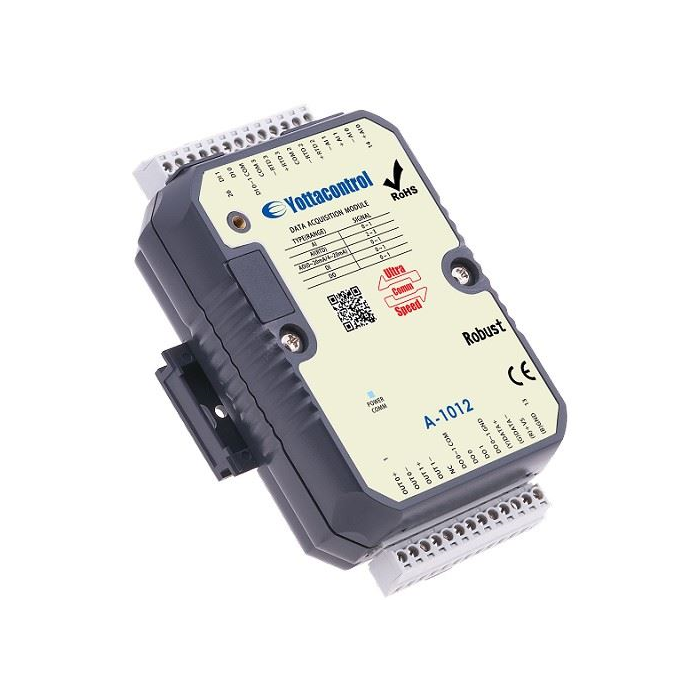

Remote Module (RS-485) 2DI 4AI 2DO 2AO
A-10x RS-485 I/O module, support protocol:
- Modbus RTU/ASCII.
- LED - DC Power, Remote Module ADIO.
- 4AI (0~20/4~20mA + PT-100/1000), 2AO (0~20/4~20mA), 2DI, 2DO (Source Output)
Specifications:
- Operation Voltage: 10~30VDC/24VAC
- Inputs(Isolation): 2*isolation DI; status low<1VDC; high>8~30VDC
- Outputs: 2*(Source Transistor)
- Continuous Current: 10-35VDC(1A)
- Communication Baud Rate: 2400~921600bps
- Isolation: YES(5000VDC)
- Input/Output Operating Frequency: 10HZ
- Operation Temperature: -20 to +75 °C
- Degree Of Protection: IP20
- Analog inputs: 4 (16-bit)
- Analog input Type: 2* 0/4~20mA + 2* PT-100/1000
- Analog Outputs: 2 (12-bit)
- Analog Outputs Type: 0/4 ~20mA
- Input Accuracy: ±0.1%
- Interface: RS-485 + USB
- Channel Independent Configuration: YES
- Sampling Rate: 10 sample/second (total)
- CMR @ 50/60 Hz: 120 dB
- Span Drift: ±50 ppm/°C+
- Zero Drift: ±18 μV/°C
- Temperature Ranges: (PT-100:-200~+600°C) (PT-1000:-200~+600°C)
Input Impedance:
- Current: 100 Ω
- RTD : 10 MΩ
| SKU | A-1012 |
|---|---|
| Brand | Yottacontrol |
