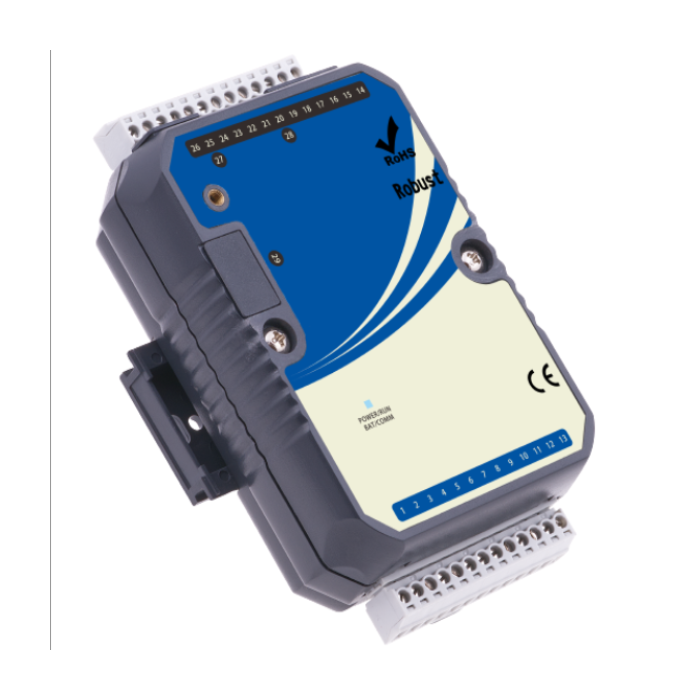

Remote Module(RS-485), 6AO(0/4~20mA)
A-10x RS-485 I/O module, support protocol:
- Modbus RTU/ASCII
- LED
- DC Power, Remote Modules AO
- 6AO (0~20/4~20mA)
- RS-485*1 Isolated
Specifications:
- LED Indicators: Power
- Power Requirement: 10~30 VDC
- Channels: 6
- Current Output: 0~20 mA, 4~20mA
- Current Load: Max. 500 Ω
- Resolution: 12-bit
- Accuracy: ±1 % of FSR
- Watchdog Timer: System & Communication
- Connector: 2 x plug-in terminal block (#14~28 AWG)
- Temperature: (Operating) -10~70 °C (14~158 °F)
- Humidity: 5~95 %RH
- Temperature: (Storage) -25~85 °C (-13~185 °F)
- Interface: Isolation RS-485
- Communication Protocol: Modbus/RTU & Modbus/ASCII
- Communication Speed Serial: From 1,200 to 115.2 k
- Communication Distance Serial: 1.2 km
- Data Flow Control: Yes
- Isolated RS-485 interfaces(2500Vrms)
| Brand | Yottacontrol |
|---|
