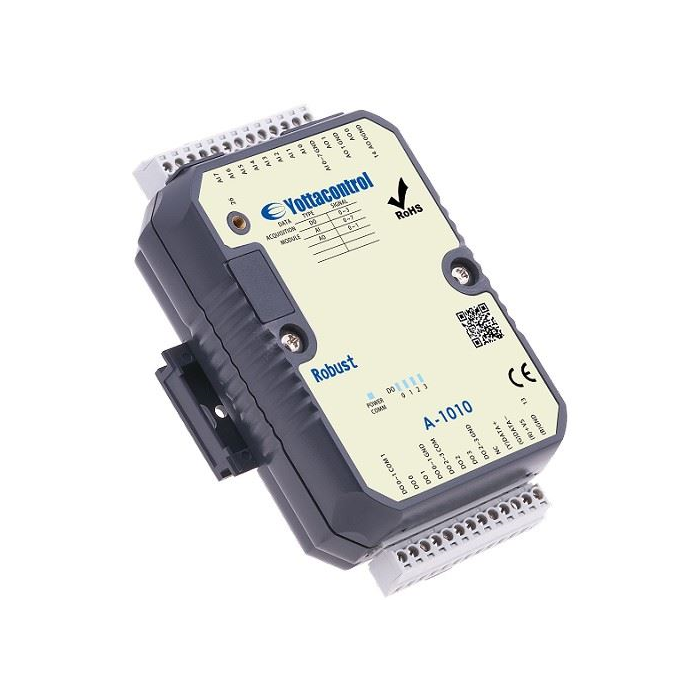

Remote Module (RS-485) 8AI 2AO 4DO (0-10V)
A-10x RS-485 I/O module, support protocol:
- Modbus RTU/ACII
- LED - DC Power, Remote Modules ADIO
- 8AI (0~10V) - 10bits, 2AO (0~10V), 4DO (Sink Output)
Specifications:
- Operation Voltage: 10~30VDC/24VAC
- Outputs: 4*(Sink Transistor)
- Continuous Current: 10-40VDC(200mA)
- Communication Baud Rate: 2400~115200bps
- Isolation: YES(5000VDC)
- Output Operating Frequency: 10HZ
- Operation Temperature: -20 to +75 °C
- Degree Of Protection: IP20
- Analog inputs: 8 (10-bit)
- Analog input Type: 0~10V
- Analog Outputs: 2 (10-bit)
- Analog Outputs Type: 0~10V
- Input Impedance: Voltage:10 MΩ
- Analog Input/Output Accuracy: ±3%/±3%
- Interface: RS-485
- Channel Independent Configuration: YES
- Sampling Rate: 10 sample/second (total)
- CMR @ 50/60 Hz: 120 dB
- Span Drift: ±50 ppm/°C
- Zero Drift: ±18 μV/°C
- Isolated RS-485 interfaces(2500Vrms)
| Brand | Yottacontrol |
|---|
