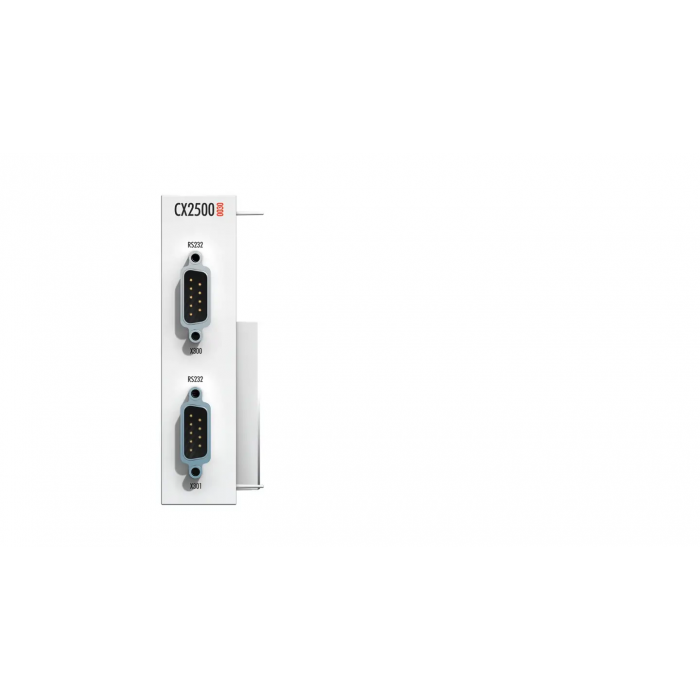

RS232 CX2500-0030
The system modules for the CX20xx, CX52xx and CX56xx family are connected to the CPU on the left-hand side via a multi-pin connector. Internally they are connected via PCI Express. Up to four modules can be connected in any order.
Serial interfaces can be added with the module CX2500-0030 (RS232).
Interfaces: RS232
Type of connection: 2 x D-sub plug, 9-pin
Power supply: via system bus (through CX2100-0xxx power supply modules)
Dimensions (W x H x D): 24 mm x 99 mm x 54.5 mm
Weight: approx. 205 g
Relative humidity: 95 %, no condensation
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
| SKU | CX2500-0030 |
|---|
