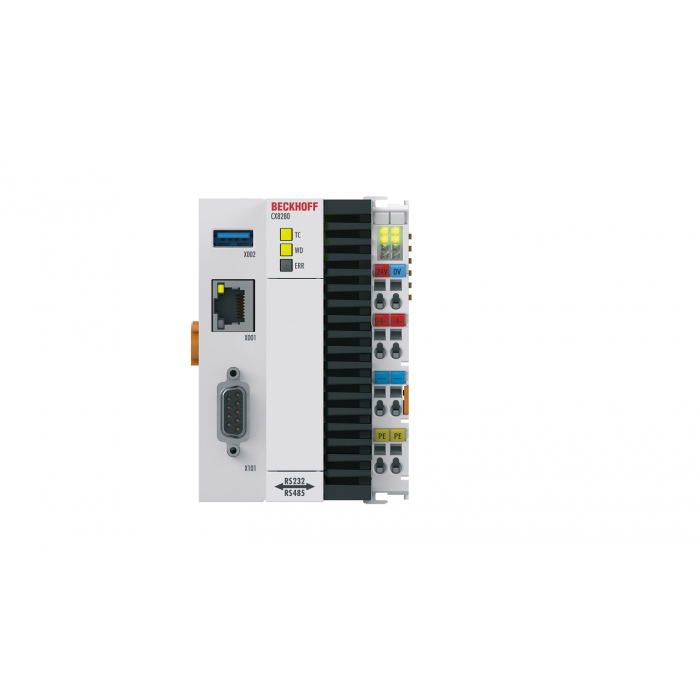

RS232/RS485 Embedded PC CX8280
The CX8280 Embedded PC has two serial interfaces, one with RS232 and one with RS485 physics. These are both located on the D-sub socket. They are not bound to any particular protocol and can be used with the corresponding TwinCAT 3 Functions for the different serial communication protocols.
The CX8280 features an ARM Cortex™-A53 dual-core processor with 1.2 GHz. The basic configuration of the CX8200 includes a 1 Gbit Ethernet interface, a USB 3.0 interface, a 1 GB LPDDR4 RAM, and a slot for a microSD card. The microSD card is not included in the scope of delivery and must be ordered separately, taking the desired memory capacity into account.
E-bus or K-bus terminals can be attached as required; the CX8280 automatically recognizes the type of I/O system connected during the start-up phase. The control system is programmed with TwinCAT 3 via the bus interface or the additional Ethernet interface. TwinCAT 3 licenses must be ordered via the TwinCAT 3 price list.
Processor: ARM Cortex™-A53, 1.2 GHz
Number of cores: 2
Flash memory: slot for microSD card, card not included
Main memory: 1 GB LPDDR4 RAM (not expandable)
Persistent memory: 1-second UPS (for 1 MB persistent data)
Interfaces: 1 x RJ45 10/100/1000 Mbit/s, 1 x USB 3.0, 1 x bus interface
Bus interface: D-sub socket, 9-pin, 1 x RS232, 1 x RS485
Data transfer rates: 300 baud…115 kbaud
Diagnostics LED: 1 x TC status, 1 x WD, 1 x error
Clock: internal, capacitor-buffered real-time clock for time and date (storage capacity > 21 days)
Operating system: TwinCAT/BSD
Control software: TwinCAT 3 runtime (XAR)
I/O connection: E-bus or K-bus, automatic recognition
Power supply: 24 V DC (-15 %/+20 %)
Current supply E-bus/K-bus: 2 A
Max. power consumption: 5 W
Max. power consumption (with loading UPS): 10 W
Dimensions (W x H x D): 71 mm x 100 mm x 73 mm
Weight: approx. 265 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
Approvals/markings: CE
TwinCAT 3 platform level: Economy (20); please see here for an overview of all the TwinCAT 3 platform level
| SKU | CX8280 |
|---|
