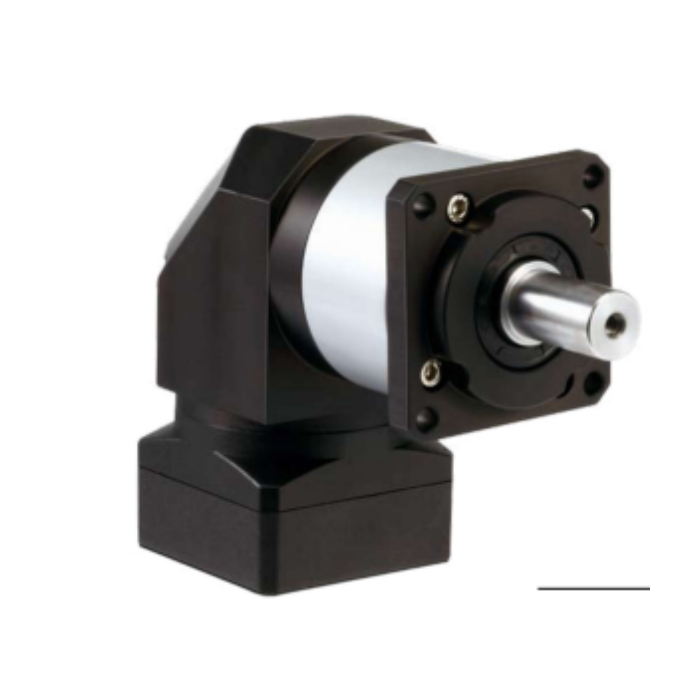

SAS SERIES 1 Stage 90 Deg. G/Box Input 40 Motor Frame shaft clamp Output 45mm

ZAR 13,665.00
Out of stock
SKU
SAS0451A -1 Stage

SAS Series Specifications:

  • Output flange in a square shape.
  • Standard or premium right-angle gearbox types.
  • Backlash that is best in class.
  • High torque output.
  • Minimal volume of noise.
  • Enhanced effectiveness.
  • Free of maintenance.
  • Motor pinion balance.
  • There are gear ratios ranging from 3:1 to 200:1.
  • The lifespan can be extended without changing the lubricant.

Planetary Gearbox Series:

  • Low noise level
  • Best-in-class backlash.
  • High output torque
  • High efficiency
  • Variable Gear Ratios: Straight type: 3: 1 ~ 100: 1 Angle type: 3: 1 ~ 200: 1
  • Applications: Packaging machines Logistics machines Semiconductor machines FPD/LCD machines.
  • Sq. Fl. 13mm Plain / Keyed Shaft SP. 35mm PCD = 50mm 1 Stage: Ratio 3-20:1 (Specify Ratio).
More Information
Brand LS Electric
