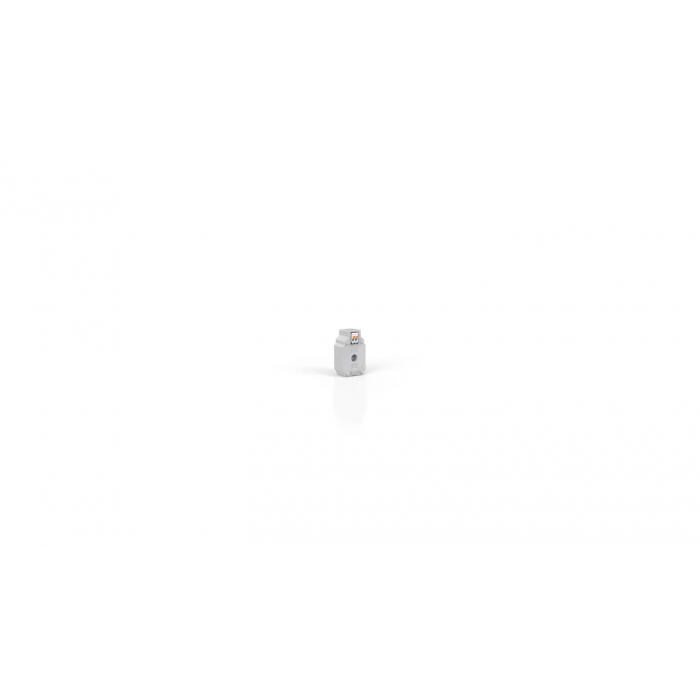

SCT1111-0060 Mini ring-type CT
The SCT1111 mini ring-type CTs can be positioned on a DIN rail by means of snap-on fastening and are thus suitable for measurements in very tight installation spaces, e.g. directly in the sub-distribution unit. 60 A AC.
Accuracy class: 1
Primary current: 60 A AC
Secondary current: 1 A
Rated power: 0.4 VA
Max. diameter round conductor: 7.6 mm
Size: 1
Dimensions (W x H x D): 27.5 mm x 46.5 mm x 19 mm
Approvals/markings: CE, cURus, EAC
| SKU | SCT1111-0060 |
|---|
