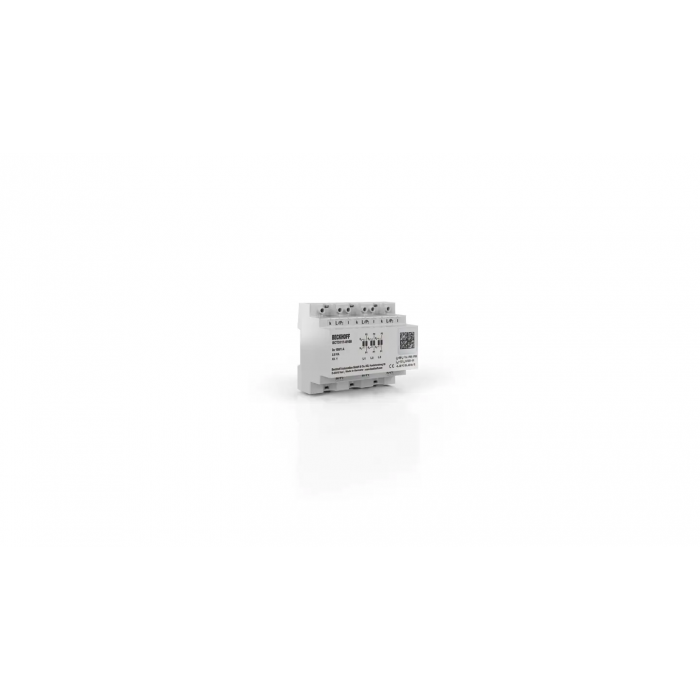

SCT3111-0080 3-phase ring-type
The compact SCT3111 3-phase ring-type CTs measure primary currents from 3 x 50 A (SCT3111-0050) to 3 x 150 A (SCT3111-0150), for round conductors with a maximum diameter of 13.5 mm. The SCT3xxx are suitable for direct mounting under commonly used power switches. 3 x 80 A AC. Accuracy class 1.
Accuracy class: 1
Primary current: 3 x 80 A AC
Secondary current: 1 A
Rated power: 1.5 VA
Max. diameter round conductor: 13.5 mm
Size: 1
Dimensions (W x H x D): 105 mm x 90 mm x 54 mm
Approvals/markings: CE, EAC
| SKU | SCT3111-0080 |
|---|
