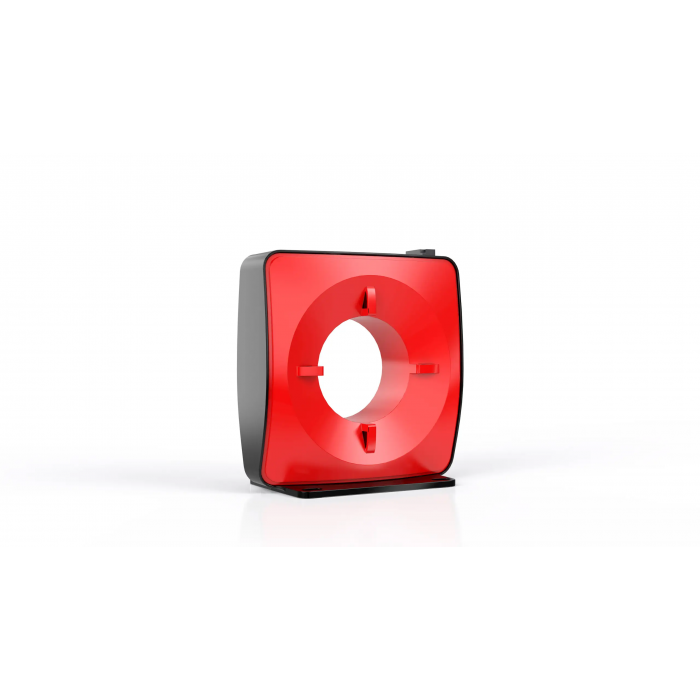

SCT5564 Ring-type CT for differential current
The SCT5564 differential current transformer can be used as a residual current monitor (RCM). The SCT5564 type B/B+ can measure DC and AC residual currents with frequencies up to 100 kHz ranging from 0 to 2 A. With its selectable settings, the RCM is a flexible platform for differential current measurement that is suitable for many applications.
Measuring range differential current (IΔn): 0…0.4 A and 0…2 A, DC-100 kHz, type B/B+
Technology: fluxgate current measurement technology
Transformer opening: 70 mm
Primary current: 100 A (IΔn = 30 mA) or 300 A (IΔn ≥ 100 mA)
Permissible primary current frequency range: 0…400 Hz
Secondary current: 4…20 mA
Rated power: 15 VA
Update interval: 1 ms (1 ksps)
Measurement error/ uncertainty: typ. < ±2.0 % relative to full scale value, see documentation
Output relay: max. 30 V and 1 A AC/DC
Rated voltage: 690 V
Power supply: 24 V DC (-10 %/+15 %)
Dimensions (W x H x D): 151.3 mm x 161 mm x 83.4 mm
Special features: Test button for triggering a test routine, can also be triggered via external DO, EN/IEC 62020-1:2020.
Operating/storage temperature: -20…+55 °C/-40…+85 °C
Approvals/markings: CE
| SKU | SCT5564 |
|---|
