SF 0/12 MC NE WS V2
Pricing available on request
Description:

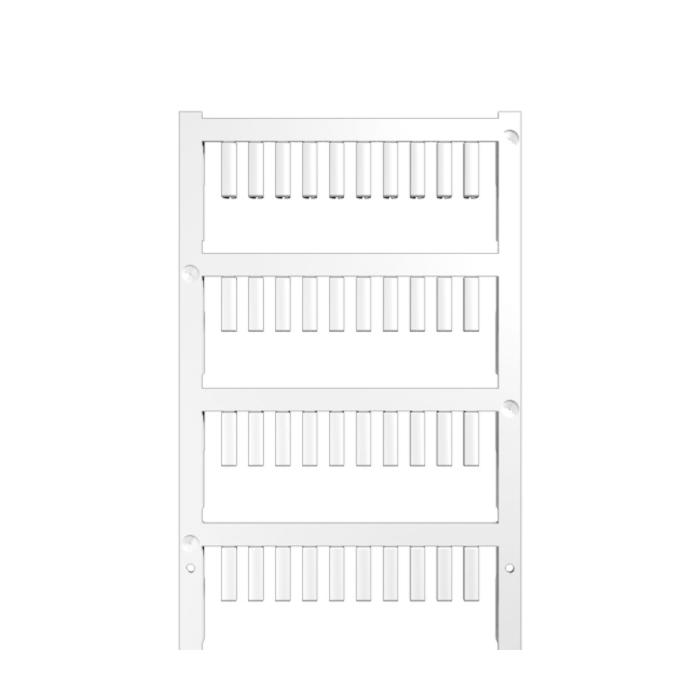

- Conductor and cable markers with a compact design are called Slim Fix.
- The markers can be attached even after the conductor has been installed.
- They are made from halogen-free material and have a flammability rating of V0/V2.
- A recognized and approved marker type for traffic engineering purposes is Slim Fix.
- Even with small markers, the SF tool enables straightforward installation.
Advantages:
- Halogen-free material.
- Flammability rating V0/V2.
- Approved and accredited markers for traffic engineering applications, etc.
- Must be fixed with cable ties if the conductor cross section is larger than 16.0 mm².
- Markers in proven Multi Card format.
Specifications:
- Version: Slim Fix, Conductor and cable markers.
- Quantity: 400.
- Depth: 3.2 mm.
- Height: 12 mm.
- Width: 3.2 mm.
- Operating temperature range: -40...100 °C.
- Colour: white.
- No Halogen.
- Material: Polyamide 66.
- Material colour according to resistance code: 9.
- Number of markers per combination: 1 Multi Card = Conductor and cable markers.
- Size of labelling field: 12 x 3.2 mm.
- Type of printing: neutral.
- UL 94 flammability rating: V-2.
Conductor and cable markers:
- Conductor O.D.: 1.2 – 1.6 mm.
- Conductor O.D., max.: 1.6 mm.
- Conductor O.D., min.: 1.2 mm.
- Conductor cross-section, max.: 0.5 mm².
- Conductor cross-section, min.: 0.25 mm².
- Cross-section for connected wire: 0.25 – 0.5 mm².
| SKU | 1919240000 |
|---|---|
| Brand | Weidmuller |
