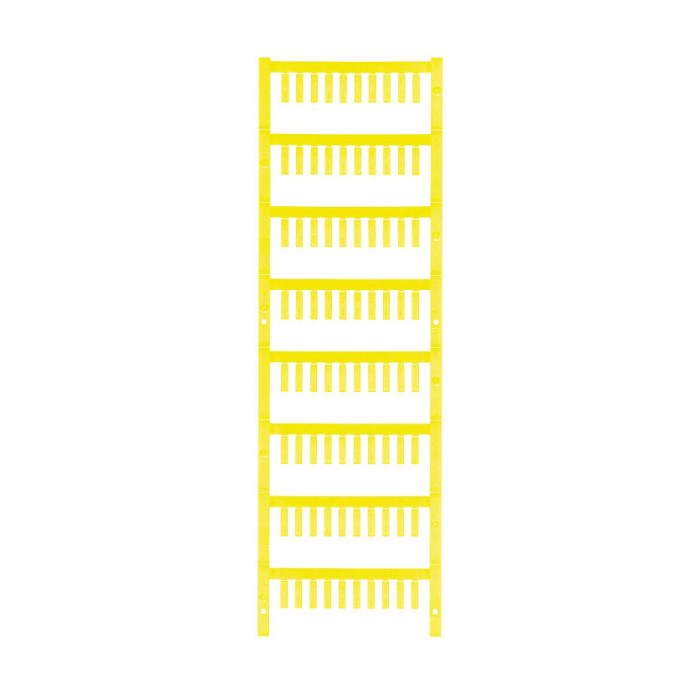

SF 2/12 MC NE GE V2
Pricing available on request
SF 2/12 MC NE GE V2:
- Conductor and cable markers with a compact design are called SlimFix.
- The markers can be attached even after the conductor has been installed.
- They are made of non-halogen materials and meet V0/V2 flammability standards.
- A recognized and approved marker type for traffic engineering purposes is SlimFix.
- Even with small markers, the SF tool enables for straightforward installation.
Advantages:
- Halogen-free material.
- Flammability rating: V0/V2.
- Certified and authorized markers for use in traffic engineering, etc.
- Cable ties are required for conductors having a cross-section bigger than 16.0 mm².
- Markers in the well-established MultiCard format.
Dimensions and weights:
- Depth: 3.65 mm.
- Depth (inches): 0.144 inch.
- Height: 12 mm.
- Height (inches): 0.472 inch.
- Width: 3.6 mm.
- Width (inches): 0.142 inch.
- Net weight: 0.245 g.
Temperatures:
- Operating temperature range: -40...100 °C.
Environmental Product Compliance:
- REACH SVHC: /.
- RoHS Compliance Status: Compliant without exemption.
General data:
- Colour: yellow.
- compatible printer: PRINTJET CONNECT.
- Halogen: No.
- Material: Polyamide 66.
- Material colour according to resistance code: 4.
- Number of markers per combination: 1 MultiCard = Conductor and cable markers.
- Number of markers per packaging unit:
- Form of supply: MultiCard.
- Operating temperature range: -40...100 °C.
- Operating temperature range, max.: 100 °C.
- Operating temperature range, min.: -40 °C.
- Recommended industries: Transportation, Machinery.
- Size of labelling field: 12 x 3.6 mm.
- Type of printing: neutral.
- UL 94 flammability rating: V-2.
- Width: 3.6 mm.
Conductor and cable markers:
- Conductor cross-section, max.: 1.5 mm².
- Conductor cross-section, min.: 0.75 mm².
- Conductor O.D.: 2.2 - 2.9 mm.
- Conductor O.D., max.: 2.9 mm.
- Conductor O.D., min.: 2.2 mm.
- Cross-section for connected wire: 0.75 - 1.5 mm².
- Halogen: No.
| SKU | 1919470000 |
|---|---|
| Brand | Weidmuller |
