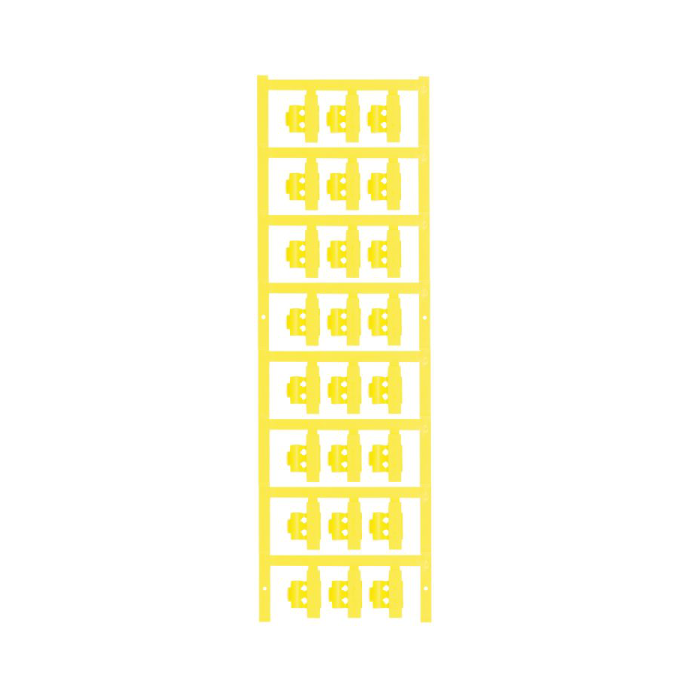

SFC 2/21 MC NE GE
Pricing available on request
Description:
- The Slim Fix Clip combines two benefits: its unique closure mechanism provides the dependability of a closed marker with the convenience of the installation of an open marker.
- Even after the conductor has been put in place, the clip mechanism enables the marking to be quickly and easily attached.
- Conductors and cables with an outer diameter of up to 5 mm can be used with Slim Fix Clips.
- The broad marking surface (up to 30 mm) allows for extended character strings.
- The substance conforms to flammability rating V2 and is halogen-free.
Advantages:
- Halogen-free material.
- Flammability rating V2.
- Fast installation without tools.
- Markers in proven Multi Card format.
- Available in the heights of 12 mm, 21 mm and 30 mm.
Specifications:
- Version: Slim Fix, Conductor and cable markers.
- Quantity: 120.
- Depth: 7.6 mm.
- Height: 21 mm.
- Width: 5.8 mm.
- Operating temperature range: -40...100 °C.
- Colour: yellow.
- No Halogen.
- Material: Polyamide 66.
- Material colour according to resistance code: 4.
- Number of markers per combination: 1 Multi Card = Conductor and cable markers.
- Size of labelling field: 12 x 5.8 mm.
- Type of printing: neutral.
- UL 94 flammability rating: V-2.
Conductor and cable markers:
- Conductor O.D.: 3 – 5 mm.
- Conductor O.D., max.: 5 mm.
- Conductor O.D., min.: 3 mm.
- Conductor cross-section, max.: 4 mm².
- Conductor cross-section, min.: 3 mm².
- Cross-section for connected wire: 3 – 4 mm².
| SKU | 1805780000 |
|---|---|
| Brand | Weidmuller |
