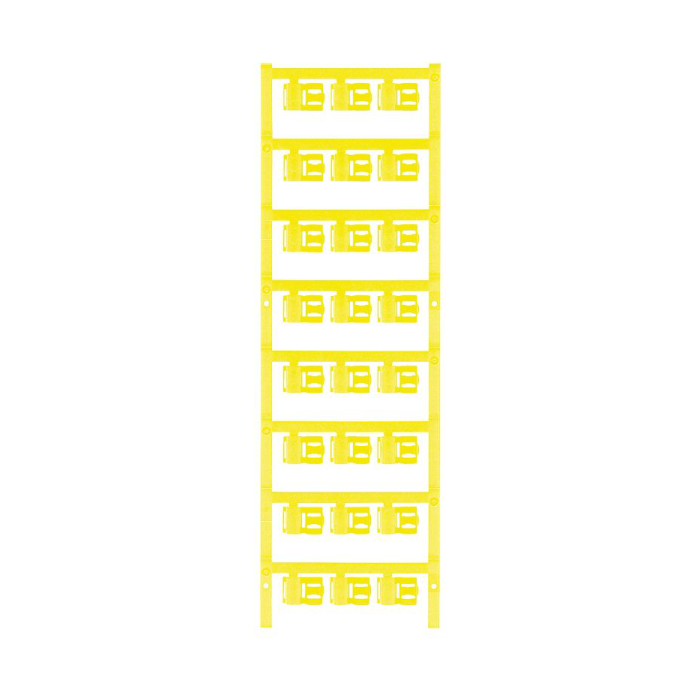

SFC 2.5/12 MC NE GE
Slim Fix Clip Multi-Card:
- A convenient clip system for wires and cables.
Highly durable markers with extra security:
- The robust polyamide 66 used to make the halogen-free Slim Fix Clips combines two benefits into one unit.
- They still give you the application-based security of a closed marker, but they can be fitted at every stage of the installation with the ease of an open marker thanks to their innovative clip closure.
- The markers feature labelling surfaces that extend up to 30 mm, making them suitable for wire and cable widths ranging from 1.5 to 7.0 mm.
- This allows ample room for lengthy, easily readable character strings, which may be printed onto the markers in multiple colours using the Print Jet Connect printer.
Slim Fix Clip SFC – the benefits to you:
- Compact: fits quickly and securely without the need for extra tools.
- The large labelling surface for lengthy character strings is informative.
- Powerful mixes of various sizes and colours.
- Individual: Print Jet Connect can be used to print this.
Specifications:
- Version: Slim Fix Clip, Conductor and cable markers.
- Quantity: 120.
- Depth: 9.1 mm.
- Height: 12 mm.
- Width: 9.3 mm.
- Operating temperature range: -40...100 °C.
- Colour: yellow.
- No Halogen.
- Material: Polyamide 66.
- Material colour according to resistance code: 4.
- Number of markers per combination: 1 multi-Card = Conductor and cable markers.
- Size of labelling field: 12 x 5.8 mm.
- Type of printing: neutral.
- UL 94 flammability rating: V-2.
Conductor and cable makers:
- Conductor O.D.: 4 - 6 mm.
- Conductor O.D., max.: 6 mm.
- Conductor O.D., min.: 4 mm.
- Conductor cross-section, max.: 10 mm².
- Conductor cross-section, min.: 4 mm².
- Cross-section for connected wire: 4 - 10 mm².
| Brand | Weidmuller |
|---|
