SFC 2.5/21 MC NE WS

ZAR 5.07
Out of stock
SKU
1062050000

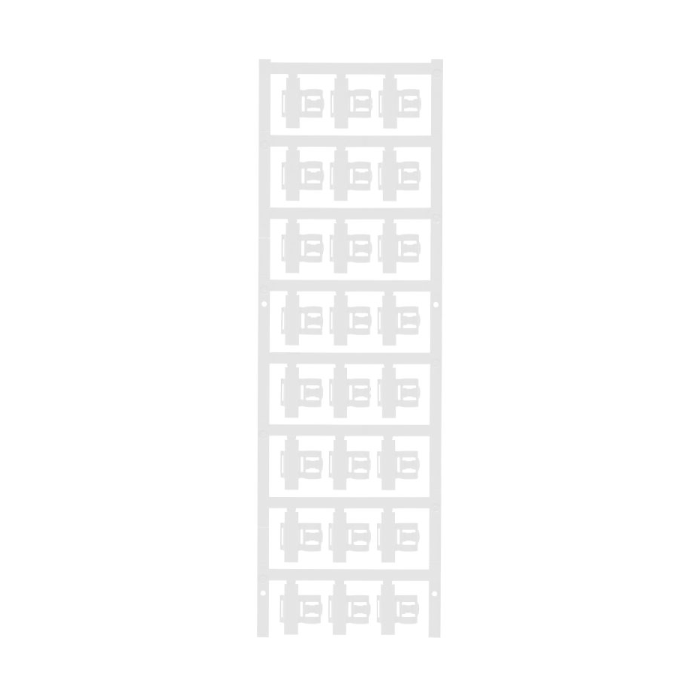

Slim Fix Clip Multi-Card:

  • A convenient clip system for wires and cables.

Highly durable markers with extra security:

  • The robust polyamide 66 used to make the halogen-free Slim Fix Clips combines two benefits into one unit.
  • They still give you the application-based security of a closed marker, but they can be fitted at every stage of the installation with the ease of an open marker thanks to their innovative clip closure.
  • The markers feature labelling surfaces that extend up to 30 mm, making them suitable for wire and cable widths ranging from 1.5 to 7.0 mm.
  • This allows ample room for lengthy, easily readable character strings, which may be printed onto the markers in multiple colours using the Print Jet Connect printer.

Slim Fix Clip SFC – the benefits to you:

  • Compact: fits quickly and securely without the need for extra tools.
  • The large labelling surface for lengthy character strings is informative.
  • Powerful mixes of various sizes and colours.
  • Individual: Print Jet Connect can be used to print this.

Specifications:

  • Version: Slim Fix Clip, Conductor and cable markers.
  • Quantity: 120.
  • Depth: 9.1 mm.
  • Height: 21 mm.
  • Width: 9.3 mm.
  • Operating temperature range: -40...100 °C.
  • Colour: white.
  • No Halogen.
  • Material: Polyamide 66.
  • Material colour according to resistance code: 9.
  • Number of markers per combination: 1 multi-Card = Conductor and cable markers.
  • Size of labelling field: 12 x 5.8 mm.
  • Type of printing: neutral.
  • UL 94 flammability rating: V-2.

Conductor and cable makers:

  • Conductor O.D.: 4 - 6 mm.
  • Conductor O.D., max.: 6 mm.
  • Conductor O.D., min.: 4 mm.
  • Conductor cross-section, max.: 10 mm².
  • Conductor cross-section, min.: 4 mm².
  • Cross-section for connected wire: 4 - 10 mm².
More Information
Brand Weidmuller
