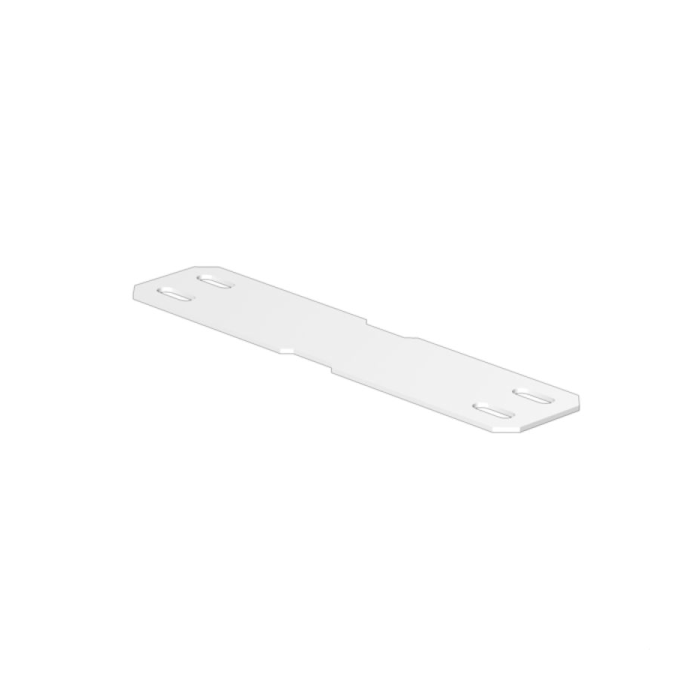

SFX 11/60 MM WS
SFX 11/60 mm WS:
- SFX is quite flexible.
- If you prefer the traditional cable tie option, SFX markers are the best way to indicate cords.
- Cables don't always follow a straight line.
- The material used in SFX markers is highly flexible polyurethane.
- The marking follows each bend of the cable and latches on easily.
Specifications dimensions and weights:
- Depth: 0.6 mm.
- Depth (inches): 0.024 inch.
- Height: 60 mm.
- Height (inches): 2.362 inch.
- Width: 13 mm.
- Width (inches): 0.512 inch.
- Net weight: 0.561 g.
Temperatures:
- Operating temperature range: -40 - 90 °C.
Environmental Product Compliance:
- REACH SVHC: /.
General data:
- Colour: white.
- compatible printer: THM MULTIMARK, THM MULTIMARK PLUS.
- Halogen: No.
- Material: Polyurethane.
- Number per roll: 1000.
- Operating temperature range: -40 - 90 °C.
- Operating temperature range, max.: 90 °C.
- Operating temperature range, min.: -40 °C.
- Size of labelling field: 44 x 10.5 mm.
- UL 94 flammability rating: HB.
- Version: halogen-free.
- Width: 13 mm.
Conductor and cable markers:
- Cable tie passage: Flat.
- Conductor O.D.: 7 -.
- Conductor O.D., min.: 7 mm.
- Halogen: No.
- Suitable cable tie: Plastic.
- Text field height: 10.5 mm.
- Text field width: 44 mm.
| Brand | Weidmuller |
|---|
