SFX 9/24 MC NE GE V2
Pricing available on request

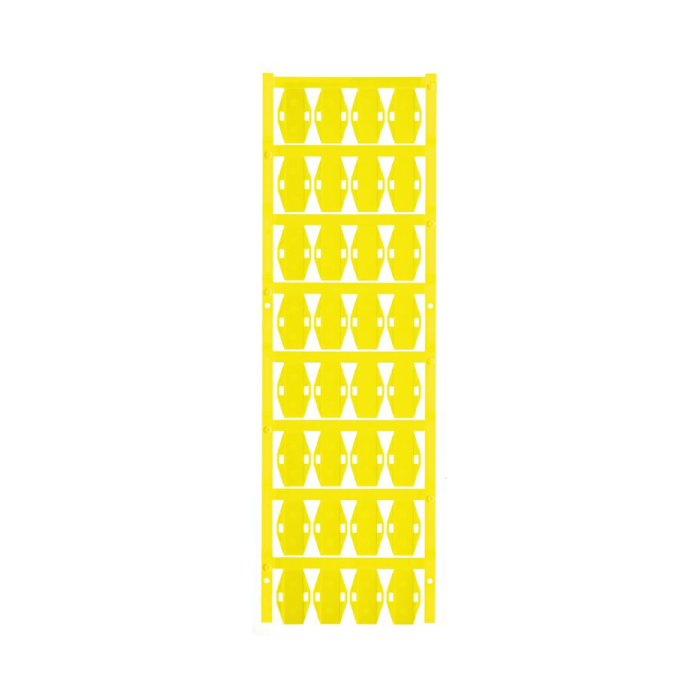

SFX 9/24 MC NE GE V2:
- Halogen-free conductor and cable markings with a compact design are called SlimFix X.
- The markers can be attached even after the conductor has been installed.
- SlimFix is a recognized and certified marker type in traffic engineering.
- The SF tool enables for simple installation, even with small markers.
- substance devoid of halogens.
- certified and authorized markers for use in traffic engineering, etc.
- Cable ties are required for conductors having a cross section bigger than 16.0 mm².
- Markers in the popular MultiCard format.
Dimensions and weights:
- Depth: 0.8 mm.
- Depth (inches): 0.031 inch.
- Height: 24 mm.
- Height (inches): 0.945 inch.
- Width: 15 mm.
- Width (inches): 0.591 inch.
- Net weight: 0.7 g.
Temperatures:
- Operating temperature range: -40...100 °C.
Environmental Product Compliance:
- REACH SVHC: /.
General data:
- Colour: yellow.
- compatible printer: PRINTJET CONNECT.
- Halogen: No.
- Material: Polyamide 66.
- Material colour according to resistance code: 4.
- Number of markers per combination: 1 MultiCard = Conductor and cable markers.
- Number of markers per packaging unit:
- Form of supply: MultiCard.
- Operating temperature range: -40...100 °C.
- Operating temperature range, max.: 100 °C.
- Operating temperature range, min.: -40 °C.
- Recommended industries: Transportation, Machinery.
- Size of labelling field: 23.9 x 9 mm.
- Type of printing: neutral.
- UL 94 flammability rating: V-2.
- Version: Installation with cable ties.
- Width: 15 mm.
Conductor and cable markers:
- Conductor cross-section, max.: 500 mm².
- Conductor cross-section, min.: 16 mm².
- Conductor O.D.: 7 - 40 mm.
- Conductor O.D., max.: 40 mm.
- Conductor O.D., min.: 7 mm.
- Cross-section for connected wire: 16 - 500 mm².
- Halogen: No.
| SKU | 1852460000 |
|---|---|
| Brand | Weidmuller |
