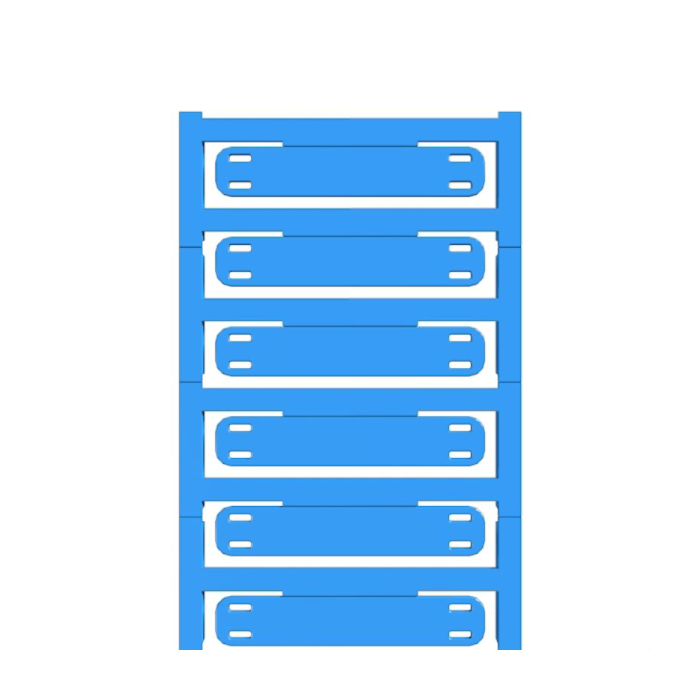

SFX-DT 11/60 MC NE BL
Pricing available on request
Description:
- We provide our customers in the food sector with detectable marking solutions to ensure the high standards needed by the HACCP concept.
- Because of a metallic infill, our detectable multi-cards may be accurately identified by metal and X-ray detectors.
- By doing this, the possibility of product contamination during manufacture is reduced.
- Important product qualities such as corrosion resistance or increased ageing resistance to UV radiation in indoor spaces and heat ensure maximum safety.
- Our own recognized laboratory periodically tests and verifies these qualities.
- Not meant for direct contact with food.
Features:
- Detectable by metal and X-ray detectors.
- Visually recognisable by blue colour.
- Corrosion resistant metallic filler.
- Clear and resistant print image.
- Available in different versions for a wide variety of marking requirements.
Specifications:
- Version: Conductor and cable markers, 7 - 40 mm, 60 x 11 mm, blue.
- Quantity: 60.
- Depth: 0.8 mm.
- Height: 60 mm.
- Width: 11 mm.
- Operating temperature range: -40...100 °C.
- Colour: blue.
- Detectible in accordance with Rondo test: 4.7 mm Al.
- No Halogen.
- Material: Polyamide 66.
- Number of markers per combination: 1 multi-Card = Conductor and cable markers.
- Printed characters: neutral.
- Size of labelling field: 44 x 11 mm.
- UL 94 flammability rating: HB.
- Version: Installation with cable ties.
Conductor and cable markers:
- Conductor O.D.: 7 - 40 mm.
- Conductor O.D., max.: 40 mm.
- Conductor O.D., min.: 7 mm.
- Conductor cross-section, max.: 500 mm².
- Conductor cross-section, min.: 16 mm².
- Cross-section for connected wire: 16 - 500 mm².
| SKU | 2602730000 |
|---|---|
| Brand | Weidmuller |
