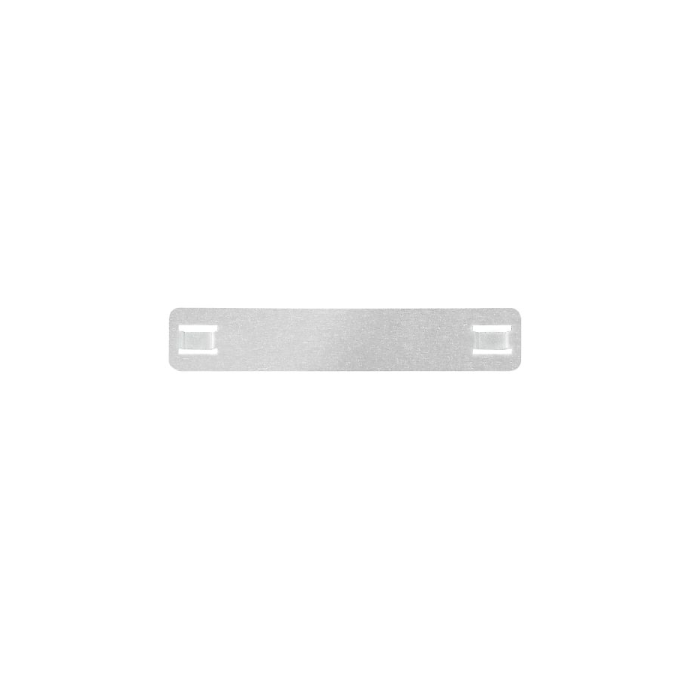

SFX-M 11/60 AL
Excellent parts in a wide range of products:
- With the help of our labelling system, you can quickly and precisely mark without getting lost.
- We have alternatives for installation, sizes, and materials that perfectly fit to meet all of your specific operational requirements.
- You can handle facility labelling for each and every one of your system's components with a custom design by using Print Jet CONNECT and M-Print®-PRO software in an organized manner.
- The outcome is a marking system that is consistently excellent.
The advantages for you:
- High-quality materials that withstand harsh environments.
- Customized: the greatest variation is offered by precisely matched system components.
- Effective: customized solutions from one source.
- Expert: internal oversight of every marking procedure.
Specifications:
- Version: MetalliCard, Conductor and cable markers.
- Quantity: 50.
- Depth: 0.8 mm.
- Height: 60 mm.
- Width: 11 mm.
- Operating temperature range: -55...130 °C.
- Colour: silver.
- Material: Anodized aluminium.
- Number of markers per combination: 1 MetalliCard = Conductor and cable markers.
- Size of labelling field: 11.2 x 45 mm.
Conductor and cable markers:
- Cable tie passage: Raised.
- Conductor O.D.: 7 - 40 mm.
- Conductor O.D., max.: 40 mm.
- Conductor O.D., min.: 7 mm.
- Conductor cross-section, max.: 500 mm².
- Conductor cross-section, min.: 16 mm².
- Cross-section for connected wire: 16 - 500 mm².
- Suitable cable tie: Steel.
| Brand | Weidmuller |
|---|
