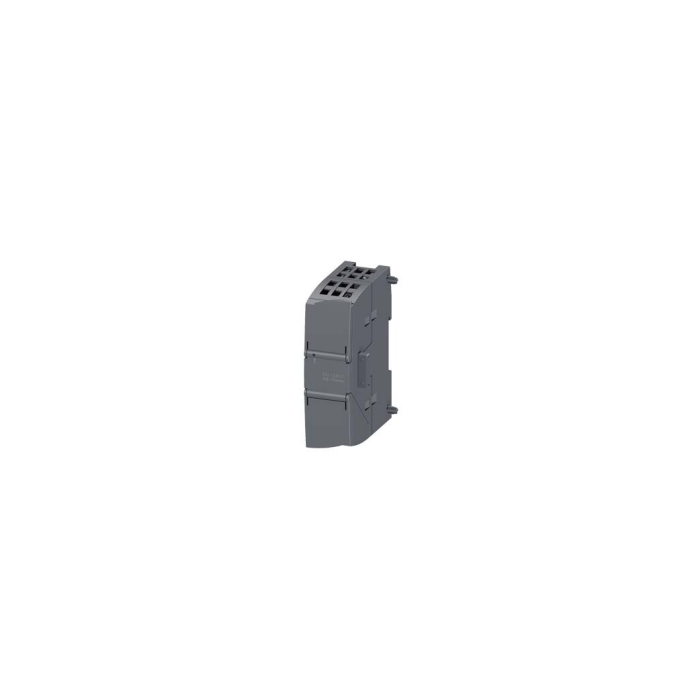

Siemens S7-1200 AS interface CM 1243-2 AS-i Master
Pricing available on request
SIMATIC S7-1200, CM 1243-2 communication module:
- Product designation: AS-Interface Master
- Product type designation: CM 1243-2
- Protection class IP: IP20
- Type of electrical connection of the AS-Interface: Screw-type connection
- Type of voltage supply: via backplane bus
Communication/ Protocol:
- Version of the AS-Interface specification: V 3.0
- AS-Interface master profile is supported: M4 (in acc. with AS-interface specification V 3.0)
- Type of data transmission: S7-1200 backplane bus
- Number of units per CPU maximum: 3
- Number of units per CPU maximum note: Max. 3 communication modules in total (CM /CP)
- Power loss [W]: W 2.9
- Insulation voltage rated value: V 500
- Product feature redundancy capability: No
- Product function suitable for AS-i Power24V: Yes
Mechanical data:
- Width mm: 30
- Height mm: 100
- Depth mm: 75
- Fastening method: Snap-On fastening on 35 mm DIN rail
- Module format: S7-1200 design
Ambient temperature:
- If installed on horizontal mounting rail during operation: 0... 55°C
- If installed on vertical mounting rail during operation: 0…45°C
- During transport: -40 ... +70°C
- During storage: -40 ... +70°C
- Relative humidity at 25 °C during operation maximum: 95 %
- Installation altitude at height above sea level maximum: 2 000 m
| SKU | 3RK7243-2AA30-0XB0 |
|---|---|
| Brand | Siemens |
