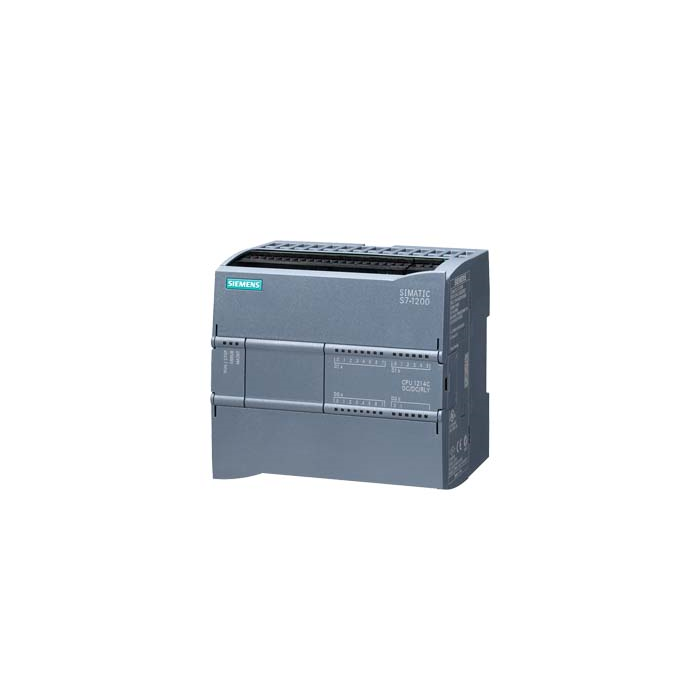

Siemens S7-1200 CPU1214C (DC/DC/RLY)
Description:
- The CPU 1214C is a compact PLC from the S7-1200 series, featuring 14 digital inputs, 10 relay outputs, and 2 analog inputs.
- It is engineered for cost-effective control in applications like HVAC, material handling, and building automation.
- With integrated PROFINET, high-speed counters, and support for OPC UA, it offers a strong balance of performance, flexibility, and connectivity.
Specifications:
- Core Specs:
- Firmware Version: V4.7.
- Work Memory: 150 KB.
- Load Memory: Up to 4 MB (via SIMATIC Memory Card).
- Power Supply: 24 V DC (20.4–28.8 V range).
- Power Loss: ~12 W.
- Processing Speed:
- Bit ops: 0.08 µs.
- Word ops: 1.7 µs.
- Float ops: 2.3 µs.
- Onboard I/O:
- Digital Inputs: 14 × 24 V DC.
- 6 inputs usable for high-speed counting (up to 100 kHz).
- Digital Outputs: 10 × Relay (2 A max).
- Analog Inputs: 2 × 0–10 V DC.
- No Analog Outputs.
- Communication:
- PROFINET Interface: 1 × RJ45 (100 Mbps).
- Protocols Supported:
- PROFINET IO Controller & Device.
- TCP/IP, DCP, LLDP, SNMP.
- OPC UA Server (Basic license required).
- Modbus TCP.
- Web Server: Supported with user-defined pages.
- S7 Routing: Yes.
- Max Connections: Up to 68 total (PG, HMI, S7, Web, OPC UA).
- Environmental & Compliance:
- Operating Temp: –20 °C to +60 °C.
- Storage Temp: –40 °C to +70 °C.
- Protection Class: IP20.
- Vibration Resistance: IEC 60068-2 compliant.
- Marine Approvals: ABS, DNV, LRS, NK, CCS.
- Certifications: CE, UL, FM, RCM, KC.
- Global Warming Potential: ~111 kg CO₂ eq (lifecycle).
| SKU | 6ES7214-1HG40-0XB0 |
|---|---|
| Brand | Siemens |
