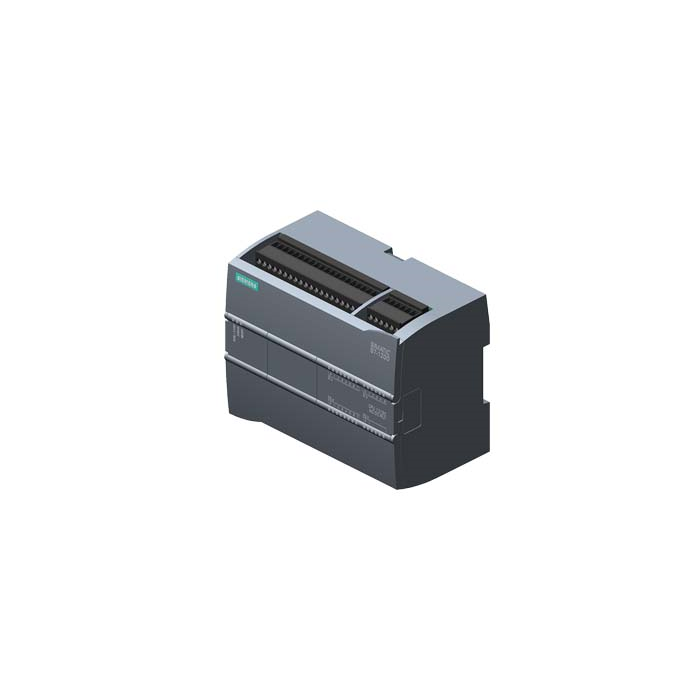

Siemens S7-1200 CPU1215C (AC/DC/RLY)
Pricing available on request
S7-1200 CPU1215C (AC/DC/RLY):
- Compact CPU
- AC/DC/relay
- 2 PROFINET ports
- Onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A, 2 AI 0-10 V DC
- 2 AO 0-20 mA DC
- Power supply: AC 85-264 V AC at 47-63 Hz
- Program/data memory: 125 KB
Supply voltage:
- Rated value (AC)
- 120 V AC: Yes
- 230 V AC: Yes
- Permissible range, lower limit (AC): 85 V
- Permissible range, upper limit (AC): 265 V
Input current:
- Current consumption (rated value): 100 mA at 120 V AC; 50 mA at 240 V AC
- Current consumption, max.: 300 mA at 120 V AC; 150 mA at 240 V AC
- Inrush current, max.: 20 A; at 264 V
- I²t: 0.8 A²·s
Output current:
- For backplane bus (5 V DC), max.: 1 600 mA; Max. 5 V DC for SM and CM
Encoder supply:
- 24 V encoder supply
- 24 V: 20.4 to 28.8V
Power loss:
- Power loss, typ.: 14 W
Work memory:
- Integrated: 200 kbyte
Load memory
- Integrated: 4 Mbyte
- Plug-in (SIMATIC Memory Card), max.: with SIMATIC memory card
Backup:
- Present: Yes
- Maintenance-free: Yes
- Without battery: Yes
Dimensions:
- Width: 130 mm
- Height: 100 mm
- Depth: 75 mm
Weights:
- Weight, approx.: 550 g
| SKU | 6ES7215-1BG40-0XB0 |
|---|---|
| Brand | Siemens |
