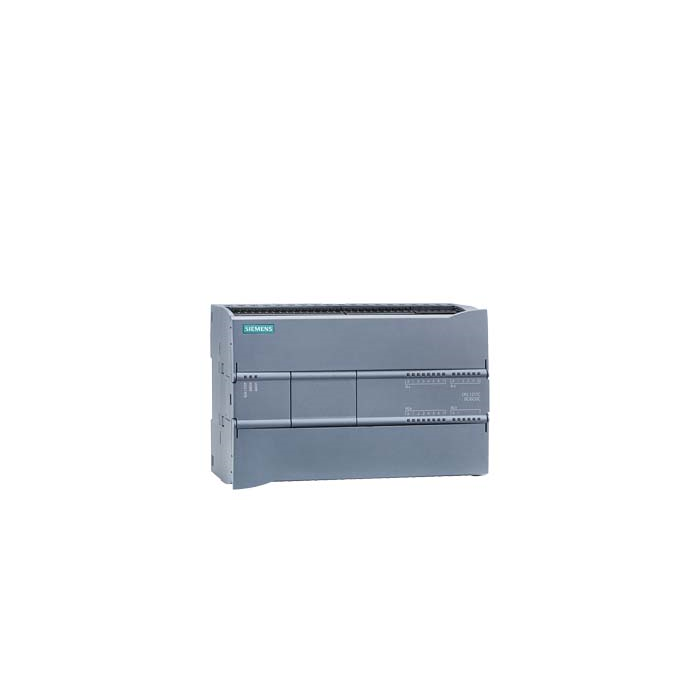

Siemens S7-1200 CPU1217C (DC/DC/DC)
Pricing available on request
S7-1200 CPU1217C (DC/DC/DC):
- Compact CPU, DC/DC/DC
- 2 PROFINET ports onboard I/O: 10 DI 24 V DC; 4 DI RS-422/485; 6 DO 24 V DC; 0.5 A; 4 DO RS
- 422/485; 2 AI 0-10 V DC
- 2 AO 0-20 mA power supply: DC 20.4-28.8 V DC, program/data memory 250 KB
Supply voltage:
- Rated value (DC)
- 24 V DC: Yes
- Permissible range, lower limit (DC): 20.4 V
- Permissible range, upper limit (DC): 28.8 V
- Reverse polarity protection: Yes
Input current:
- Current consumption (rated value): 600 mA; CPU only
- Current consumption, max.: 1 600 mA; CPU with all expansion modules
- Inrush current, max.: 12 A; at 28.8 V DC
- I²t: 0.5 A²·s
Output current:
- For backplane bus (5 V DC), max.: 1 600 mA; Max. 5 V DC for SM and CM
Encoder supply:
- 24 V encoder supply
- 24 V: L+ minus 4 V DC min.
Power loss:
- Power loss, typ.: 12 W
Work memory:
- Integrated: 250 kbyte
Load memory:
- Integrated: 4 Mbyte
- Plug-in (SIMATIC Memory Card), max.: with SIMATIC memory card
Backup:
- Present: Yes
- Maintenance-free: Yes
- Without battery: Yes
Dimensions:
- Width: 150 mm
- Height: 100 mm
- Depth: 75 mm
Weights:
- Weight, approx.: 530 g
| SKU | 6ES7217-1AG40-0XB0 |
|---|---|
| Brand | Siemens |
