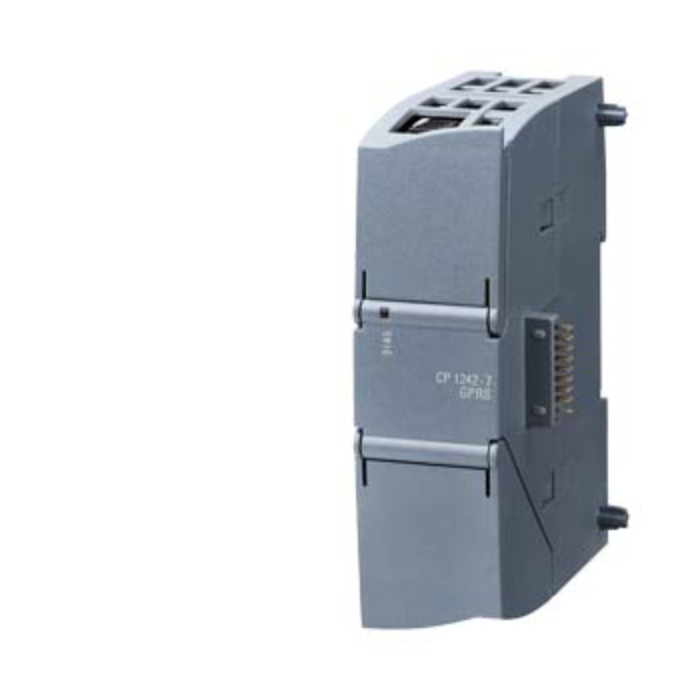

Siemens S7-1200 Mobile Wireless CP 1242-7 GPRS
Pricing available on request
Supply voltage, current consumption, power loss:
- Type of voltage / of the supply voltage: DC
- Supply voltage / external: 24 V
- Supply voltage / external / at DC / rated value: 24 V
- Relative positive tolerance / at DC / at 24 V: 20 %
- Relative negative tolerance / at DC / at 24 V: 20 %
- Consumed current from external supply voltage / at DC / at 24 V / typical: 0.1 A
- From external supply voltage / at DC / at 24 V / maximum: 0.22 A
- Power loss [W]: 2.4 W
Transfer rate:
- For GPRS transmission with downlink / maximum: 86 kbit/s
- With uplink / maximum: 43 kbit/s
Interfaces:
- Number of interfaces / according to Industrial Ethernet: 0
- Number of electrical connections for external antenna(s): 1
- For power supply: 1
- Number of slots:
- For SIM cards: 1
Type of electrical connection:
- For external antenna(s): SMA socket (50 ohms)
- For power supply: 3-pole terminal block
- Slot version for SIM card: Standard
Ambient temperature:
- For vertical installation / during operation: -20 ... +60 °C
- For horizontally arranged busbars / during operation: -20 ... +70 °C
- During storage: -40 ... +70 °C
- During transport: -40 ... +70 °C
- Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %
- Protection class IP: IP20
Design, dimensions and weights:
- Module format: Compact module S7-1200 single width
- Width: 30 mm
- Height: 100 mm
- Depth: 75 mm
- Net weight: 0.133 kg
| SKU | 6GK7242-7KX31-0XE0 |
|---|---|
| Brand | Siemens |
