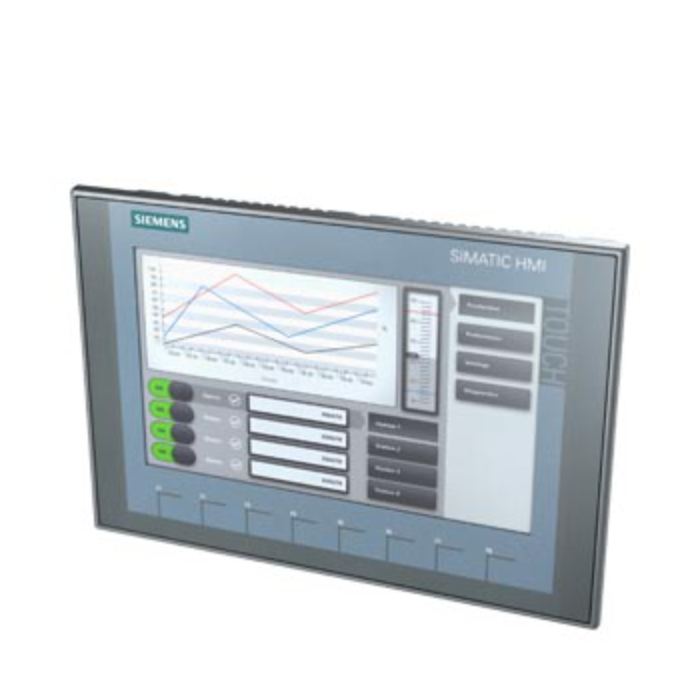

Siemens S7-1200 Operator control and monitoring SIMATIC HMI KTP900 Basic Color 9"
Pricing available on request
Description:
- This panel features a 9-inch TFT widescreen display with 800 × 480 resolution, combining touch functionality with 8 programmable function keys.
- It is optimized for PROFINET-based systems, offering seamless integration with SIMATIC S7-1200 and S7-1500 controllers.
Specifications:
- Display Size: 9" TFT colour.
- Resolution: 800 × 480 pixels.
- Touch Type: Analog-resistive.
- Function Keys: 8 programmable keys.
- Backlight Lifetime: ~20,000 hours.
- Processor: ARM-based.
- RAM / Flash: 128 MB each.
- User Memory: 10 MB.
- Interface: 1 × Ethernet (RJ45), 1 × USB host.
- Protocols Supported: PROFINET, Modbus TCP/IP, EtherNet/IP.
- Power Supply: 24 V DC (19.2–28.8 V range).
- Power Consumption: ~5.5 W.
- Dimensions (W×H×D): 267 × 182 × 39.4 mm.
- Mounting Cutout: 251 × 166 mm.
- Weight: ~1.13 kg (without packaging).
- Environmental Ratings:
- Operating Temp: 0 to +50 °C.
- Storage Temp: –20 to +60 °C.
- Humidity: Up to 90% (non-condensing).
- Protection Class: IP65 (front), IP20 (rear).
- Vibration/Shock: IEC 60068-2 compliant.
- Certifications & Approvals:
- CE, UL, CSA, RCM, KC.
- Marine: ABS, BV, DNV, LRS, RINA, NK.
- EMC: EN 61000-6-2 / EN 61000-6-4.
- Environmental Product Declaration (EPD).
- Global Warming Potential: ~85 kg CO₂ eq.
| SKU | 6AV2123-2JB03-0AX0 |
|---|---|
| Brand | Siemens |
