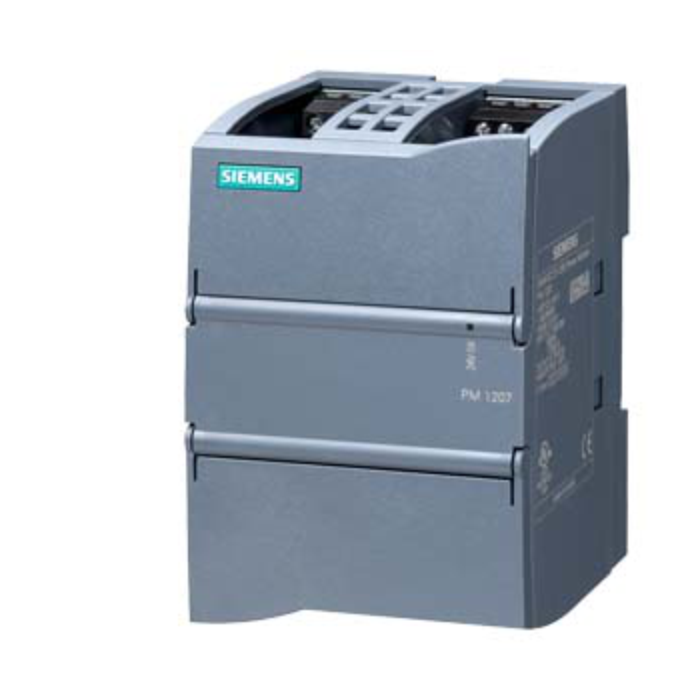

Siemens S7-1200 Power supply
Pricing available on request
Description:
- This compact power supply converts 120/230 V AC input into a regulated 24 V DC output at 2.5 A, making it ideal for powering PLCs, I/O modules, sensors, and actuators in control panels.
Specifications:
- Input Characteristics:
- Input Voltage Range:
- 85–132 V AC or 176–264 V AC (automatic range selection).
- Frequency: 47–63 Hz.
- Inrush Current: Max 13 A (limited to 3 ms).
- Fuse Protection: Internal T 3.15 A / 250 V (non-accessible).
- Recommended MCB:
- 16 A (type B) or 10 A (type C).
- Output Characteristics:
- Rated Output Voltage: 24 V DC.
- Rated Output Current: 2.5 A.
- Voltage Tolerance: ±3%.
- Ripple (max): 150 mV.
- Voltage Peak (max): 240 mV.
- Short-Circuit Protection: Yes (constant current characteristic).
- Overvoltage Protection: <33 V.
- Soft Start: No overshoot on power-up.
- Efficiency: ~83%.
- Power Loss: ~12 W.
- MTBF @ 40 °C: ~1.49 million hours.
- Mechanical & Environmental:
- Dimensions(W×H×D): 70 × 100 × 75 mm.
- Mounting; DIN rail (EN 60715) or wall mount.
- Protection Rating: IP20.
- Operating Temp: 0 to +60 °C.
- Storage Temp: –40 to +85 °C.
- Humidity: 5–95% (non-condensing).
- Weight: ~0.3 kg.
- Compliance & Approvals:
- CE, UKCA, UL, CSA, FM, RCM, CCC.
- Hazardous Location: ATEX, IECEx, Class I Div 2.
- Marine: ABS, BV, DNV, LRS, NK, RMRS, CCS.
- Environmental Product Declaration (EPD).
- Global Warming Potential: 334.2 kg CO₂ eq.
| SKU | 6EP1332-1SH71 |
|---|---|
| Brand | Siemens |
