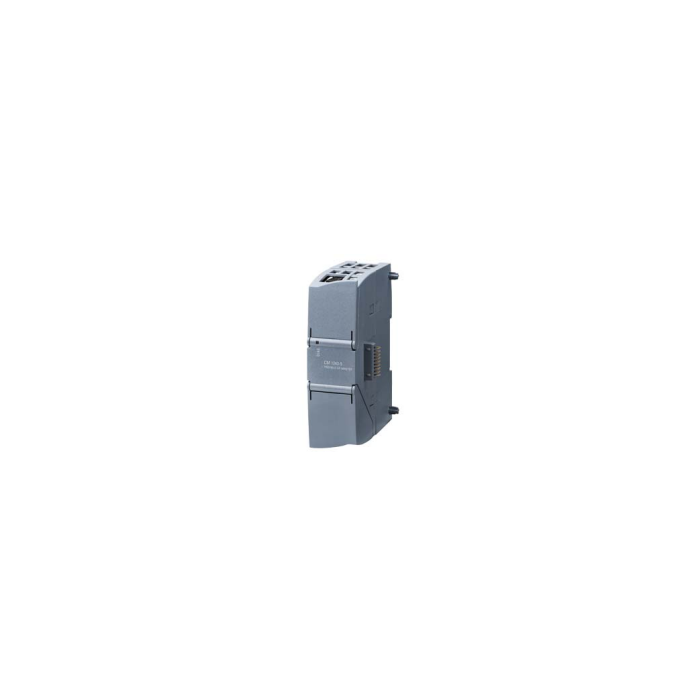

Siemens S7-1200 PROFIBUS CM 1243-5 PROFIBUS DP-Master
Pricing available on request
Supply voltage, current consumption, power loss:
- Type of voltage / of the supply voltage: DC
- Supply voltage / external: 24 V
- Supply voltage / external / at DC / rated value: 24 V
- Relative positive tolerance / at DC / at 24 V: 20 %
- Relative negative tolerance / at DC / at 24 V: 20 %
- Consumed current from external supply voltage / at DC / at 24 V / typical: 0.1 A
- Power loss [W]: 2.4 W
Interfaces:
- Number of interfaces / according to Industrial Ethernet: 0
- Number of electrical connections at the 1st interface / according to PROFIBUS: 1
- For power supply: 1
- Type of electrical connection at the 1st interface / according to PROFIBUS: 9-pin Sub-D socket (RS485)
- For power supply: 3-pole terminal block
- Transfer rate at the 1st interface / according to PROFIBUS: 9.6 kbit/s ... 12 Mbit/s
Ambient temperature:
- For vertical installation / during operation: 0 ... 45 °C
- For horizontally arranged busbars / during operation: 0 ... 55 °C
- During storage: -40 ... +70 °C
- During transport: -40 ... +70 °C
- Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %
- Protection class IP: IP20
Design, dimensions and weights:
- Module format: Compact module S7-1200 single width
- Width: 30 mm
- Height: 100 mm
- Depth: 75 mm
- Net weight: 0.134 kg
| SKU | 6GK7243-5DX30-0XE0 |
|---|---|
| Brand | Siemens |
