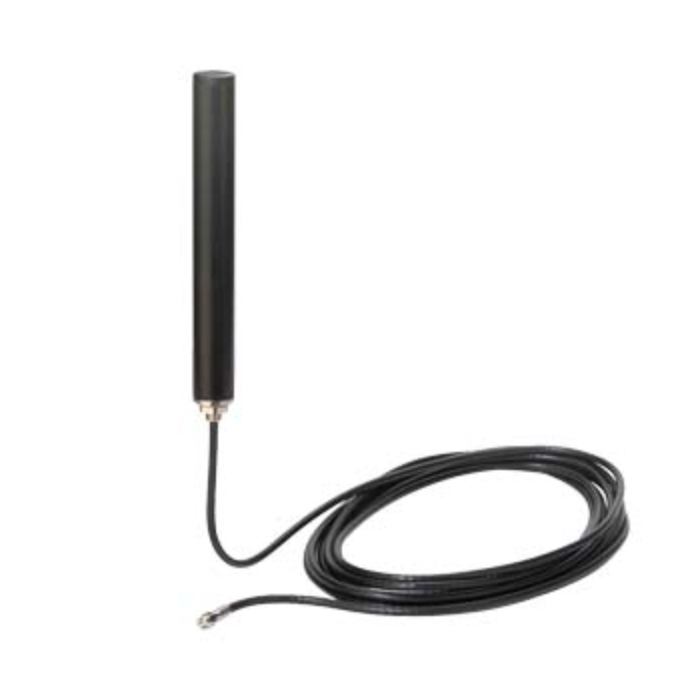

Siemens S7-1200 Quad-band GSM / UMTS / LTE ANT794-4MR antenna
Pricing available on request
Description:
- The ANT794-4MR is a rod-style omnidirectional antenna engineered for 2G, 3G, and 4G (GSM/UMTS/LTE) networks in the EU frequency spectrum.
- It features a 5-meter permanently attached cable with an SMA male connector and is supplied with a mounting bracket and fasteners for vertical wall or mast installation.
- Its rugged, weatherproof design makes it suitable for industrial and outdoor deployments.
Specifications:
- Antenna Type: Rod antenna, omnidirectional.
- Supported Networks: GSM, UMTS, LTE (EU bands).
- Operating Frequencies: 790–960 MHz, 1710–2170 MHz, 2400–2690 MHz.
- Antenna Gain: 0 dB.
- Polarization: Linear Vertical.
- Impedance: 50 Ω.
- VSWR (max): 2.
- Connector Type: SMA male.
- Cable Length: 5 meters.
- Cable Type: Li02YS-St-C-Y 1.
- Material: Hard PVC, UV-resistant.
- Protection Class: IP54.
- Ambient Temperature Range: –40 °C to +85 °C.
- Mounting Options: Wall, mast (vertical only).
- Dimensions (Ø × H): 25 mm × 193 mm.
- Net Weight: ~310 g.
- RoHS Compliant: Yes.
- Reference Code (IEC 81346-2:2019): TFB.
| SKU | 6NH9860-1AA00 |
|---|---|
| Brand | Siemens |
