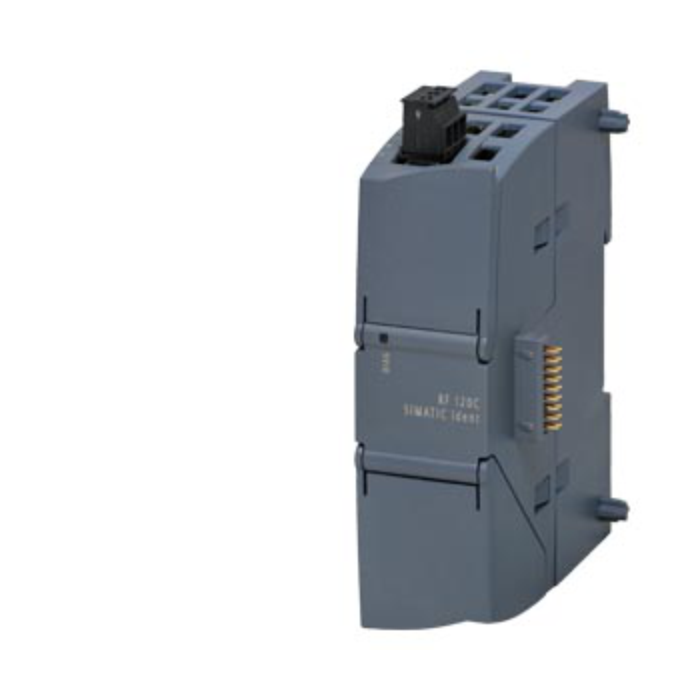

Siemens S7-1200 RF120C Identification
Pricing available on request
RFID communication module RF120C for SIMATIC S7-1200; 1 reader connectable; RS-422 or RS232:
- Supply voltage, current consumption, power loss.
- Supply voltage / at: DC
- Rated value: 24 V/ 20 ... 30 V
- Consumed current:
- At DC / at 24 V / without connected devices / typical: 0.03 A
- From supply voltage 1L+ / maximum: 1 A
Transfer rate:
- Transfer rate / at the point-to-point connection / serial / maximum: 115.2 kbit/s
Interfaces:
- Design of the interface / for point-to-point connection: RS422/RS232
- Number of readers / connectable: 1
Type of electrical connection:
- Of the backplane bus: S7-1200 backplane bus
- For supply voltage: Screw terminals
- Design of the interface / to the reader / for communication: sub-D, 9-pin, female
Mechanical data:
- Material: Xantar MX 1094
- Color: Ti-grey 24L01
- Tightening torque / of the screw for securing the equipment / maximum: 0.45 N·m
Ambient temperature:
- During operation: 0 ... 55 °C
- During storage: -40 ... +70 °C
- During transport: -40 ... +70 °C
- Protection class IP: IP20
- Shock resistance: According to IEC 61131-2
- Shock acceleration: 300 m/s²
- Vibrational acceleration: 100 m/s²
Design, dimensions and weights:
- Width: 30 mm
- Height: 100 mm
- Depth: 75 mm
- Net weight: 0.15 kg
- Fastening method: S7-1200 rack
- Wire length / for RS 422 interface / maximum: 1000 m
| SKU | 6GT2002-0LA00 |
|---|---|
| Brand | Siemens |
