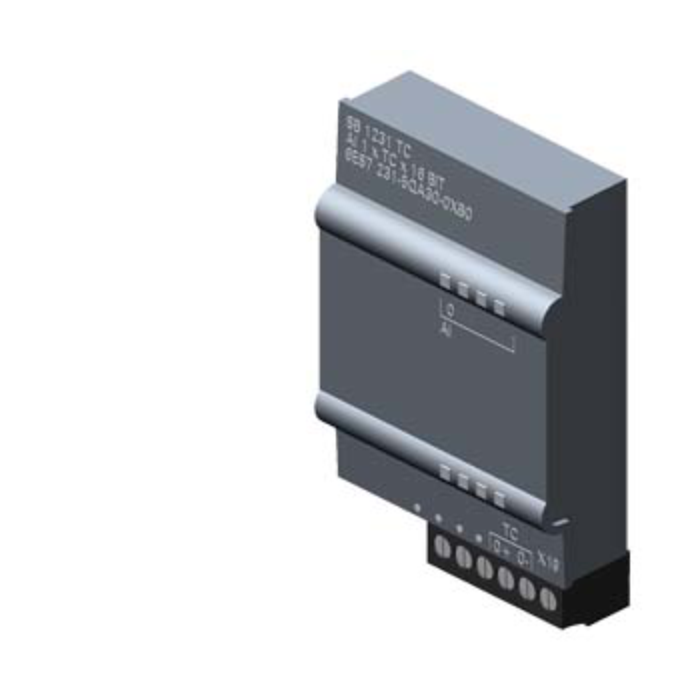

Specifications:

• Electrical Characteristics:
• Supply Voltage: 24 V DC.
• Backplane Bus Current: 20 mA.
• Power Loss: 0.5 W.
• Destruction Limit: ±35 V (voltage & current inputs).
• Analog Input:
• Channels: 1.
• Sensor Types: Thermocouples (J, K, T, E, R, S, B, N, C, TXK/XK(L)).
• Voltage Range: ±80 mV.
• Input Resistance: ≥1 MΩ.
• Resolution: 15-bit + sign.
• Measurement Principle: Integrating.
• Temperature Units: Selectable (°C or °F).
• Smoothing: Parameterizable.
• Accuracy:
• ±0.1% @ 25 °C.
• ±0.2% up to 55 °C.
• Repeatability: ±0.5%.
• Interference Suppression:
• 85 dB @ 10/50/60/400 Hz.
• Common Mode: ≥120 dB.
• Mechanical & Environmental:
• Dimensions (W x H x D): 38 × 62 × 21 mm.
• Mounting: Direct CPU attachment.
• Protection Rating: IP20.
• Operating Temp: –20 to +60 °C.
• Storage Temp: –40 to +70 °C.
• Humidity: Up to 95% (non-condensing).
• Weight: ~35 g.
• Diagnostics & Approvals:
• Wire-Break Detection: Yes.
• Diagnostic LEDs: Input status & maintenance.
• Certifications: CE, UL, CSA, FM, RCM, KC.
• Marine Approvals: DNV, BV, RMRS, CCS, ABS, RINA.
• Hazardous Location: ATEX, IECEx.
