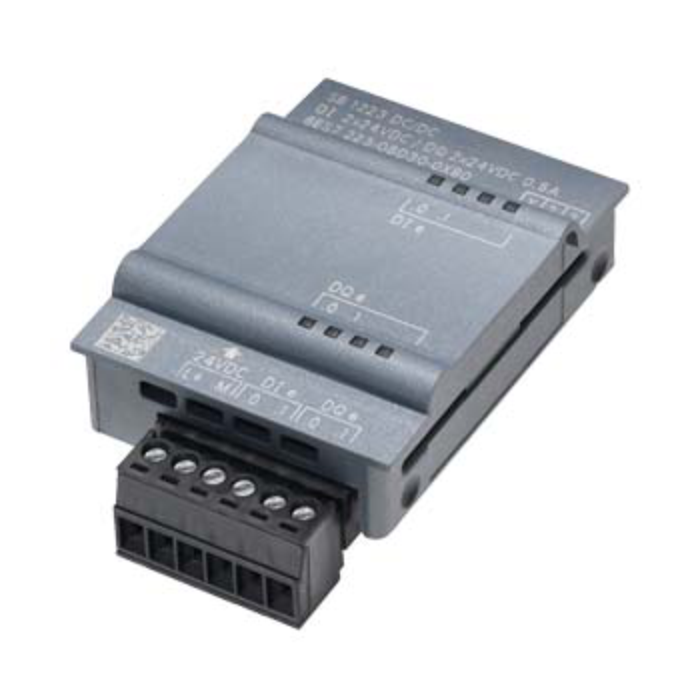

Specifications:

• Electrical Characteristics:
• Backplane Bus Current: 35 mA.
• Power Loss: 0.5 W.
• Rated Voltage: 5 V DC (both input and output).
• Digital Inputs:
• Channels: 2 (current sourcing).
• Signal Levels:
• “0”: L+ minus 1.0 V to L+.
• “1”: 0 V to L+ minus 2.0 V.
• Input Current:
• “0”: Max 2.2 mA.
• “1”: Min 5.1 mA, Typ 15 mA.
• Input Delay:
• Ultra-fast: 0.1–20.0 µs.
• Standard: 0.05–20.0 ms (parameterizable).
• Cable Length: Up to 50 m (shielded, twisted pair).
• Digital Outputs:
• Channels: 2 (MOSFET, solid-state).
• Rated Voltage: 5 V DC.
• Signal Levels:
• “0”: Max 0.2 V.
• “1”: Min L+ minus 0.7 V.
• Output Current:
• Rated & Max: 0.1 A.
• Load Resistance: Up to 72 Ω.
• Short-Circuit Protection: Not included.
• Cable Length: Up to 50 m (shielded).
• Mechanical & Environmental:
• Dimensions (W x H x D): 38 × 62 × 21 mm.
• Mounting: Direct CPU attachment.
• Protection Rating: IP20.
• Operating Temp: –20 to +60 °C (horizontal).
• Storage Temp: –40 to +70 °C.
• Humidity: Up to 95% (non-condensing).
• Weight: ~35 g.
• Compliance & Approvals:
• CE, UL, CSA, FM, RCM, KC.
• Marine: DNV, BV, ABS, RMRS, CCS, RINA.
• Hazardous Location: ATEX, IECEx.
• Diagnostic LEDs for both inputs and outputs.
