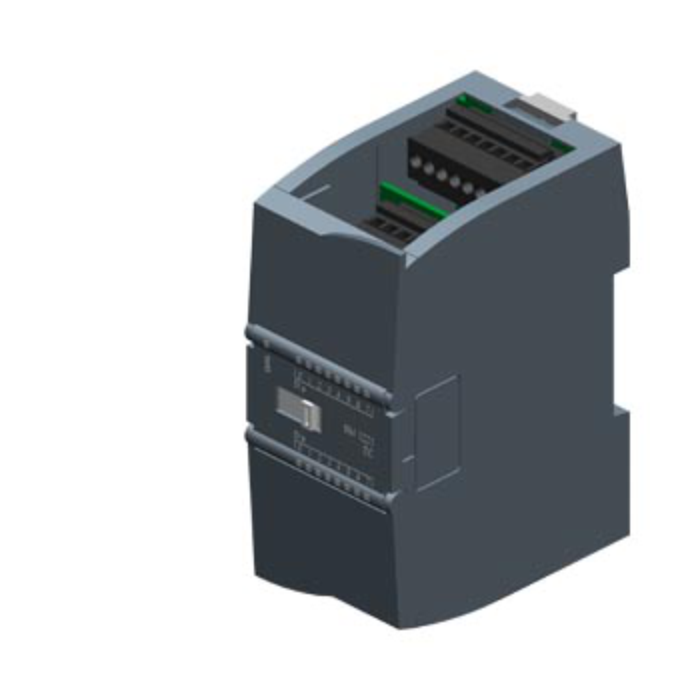

Siemens S7-1200 SM1221 Digital DI 16x24 V DC
Pricing available on request
SIMATIC S7-1200 Digital input SM 1221, 16 DI, 24 V DC, Sink/Source:
- Product type designation: SM 1221, DI 16x24 V DC
Supply voltage:
- Rated value (DC): 24 V
- Permissible range, lower limit (DC): 20.4 V
- Permissible range, upper limit (DC): 28.8 V
Output voltage / header:
- Supply voltage of the transmitters / header present: Yes
Power loss:
- Power loss, typ.: 2.5 W
Digital inputs:
- Number of digital inputs: 16
- In groups of: 4
- Input characteristic curve in accordance with IEC 61131, type 1: Yes
Dimensions:
- Width: 45 mm
- Height: 100 mm
- Depth: 75 mm
Weights:
- Weight, approx.: 210 g
| SKU | 6ES7221-1BH32-0XB0 |
|---|---|
| Brand | Siemens |
