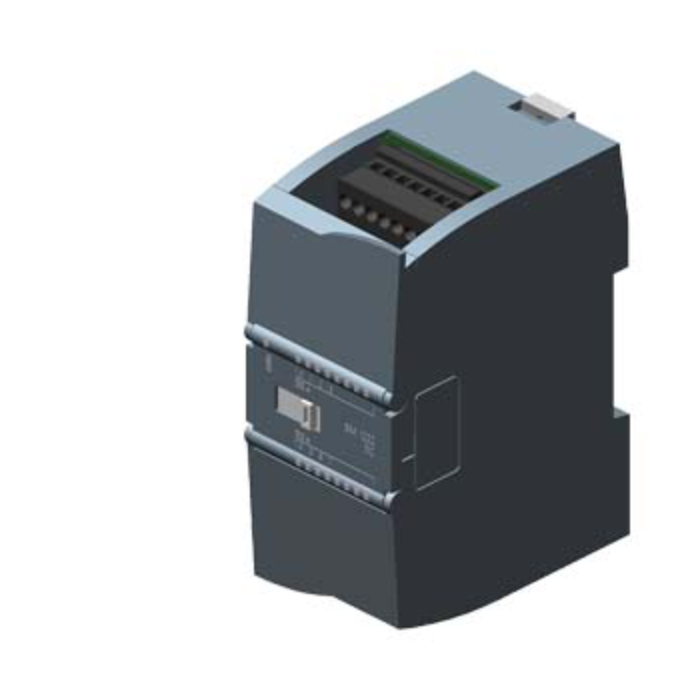

Siemens S7-1200 SM1222 Digital DQ 8x24 V DC 0.5 A
Pricing available on request
SIMATIC S7-1200 Digital output SM 1222:
- Product type designation: SM 1222, DQ 8x24 V DC/0.5 A
Supply voltage:
- Permissible range, lower limit (DC): 20.4 V
- Permissible range, upper limit (DC): 28.8 V
Input current:
- From backplane bus 5 V DC, max.: 120 mA
Power loss:
- Power loss, typ.: 1.5 W
Digital outputs:
- Number of digital outputs: 8
- In groups of: 1
- Short-circuit protection No: to be provided externally
- Limitation of inductive shutdown voltage to: typ. (L+) -48 V
Ambient temperature during operation:
- Min.: -20 °C
- Max.: 60 °C
- Horizontal installation, min.: -20 °C
- Horizontal installation, max.: 60 °C
- Vertical installation, min.: -20 °C
- Vertical installation, max.: 50 °C
- Permissible temperature change: 5°C to 55°C, 3°C / minute
Dimensions:
- Width: 45 mm
- Height: 100 mm
- Depth: 75 mm
Weights:
- Weight, approx.: 180 g
| SKU | 6ES7222-1BF32-0XB0 |
|---|---|
| Brand | Siemens |
