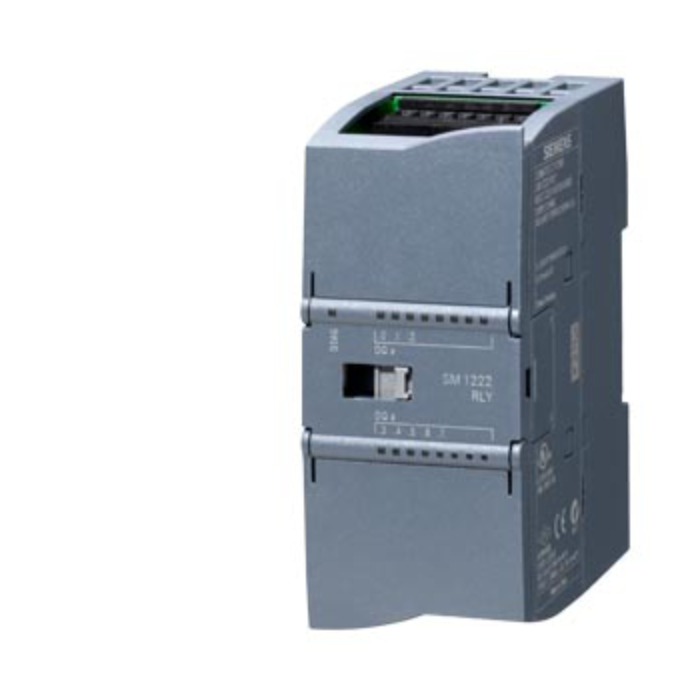

Siemens S7-1200 SM1222 Digital DQ 8xRLY 30 V DC/250 V AC 2 A
Pricing available on request
SIMATIC S7-1200 Digital output SM 1222:
- Product type designation: SM 1222, DQ 8x relay/2 A
- Permissible range, lower limit (DC): 20.4 V
- Permissible range, upper limit (DC): 28.8 V
- From backplane bus 5 V DC, max.: 120 mA
Digital outputs:
- From load voltage L+, max.: 11 mA/relay coil
Power loss:
- Power loss, typ.: 4.5 W
Output voltage:
- Rated value (DC): 5 V DC to 30 V DC
- Rated value (AC): 5 V AC to 250 V AC
Ambient temperature during operation:
- Min.: -20 °C
- Max.: 60 °C
- Horizontal installation, min.: -20 °C
- Horizontal installation, max.: 60 °C
- Vertical installation, min.: -20 °C
- Vertical installation, max.: 50 °C
- Permissible temperature change: 5°C to 55°C, 3°C / minute
Dimensions:
- Width: 45 mm
- Height: 100 mm
- Depth: 75 mm
Weights:
- Weight, approx.: 190 g
| SKU | 6ES7222-1HF32-0XB0 |
|---|---|
| Brand | Siemens |
