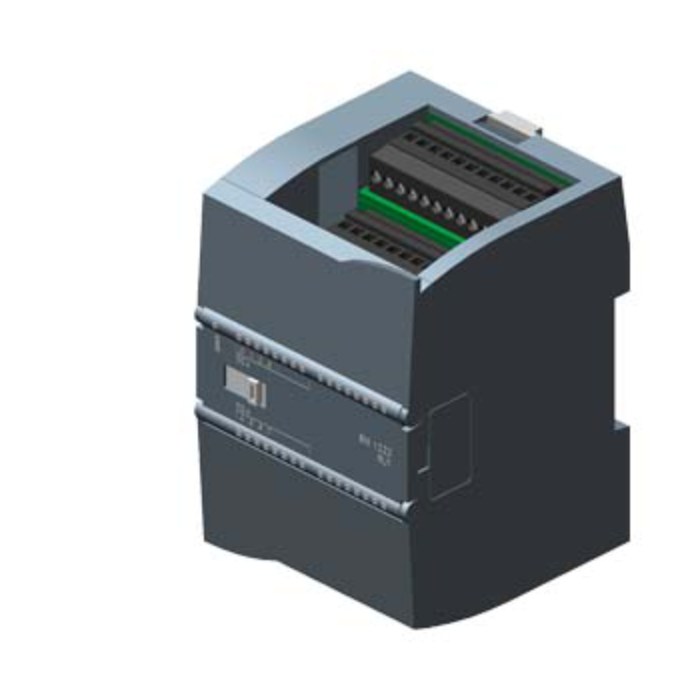

Siemens S7-1200 SM1222 Digital DQ 8xRLY Switchable 30 V DC/250 V AC 2 A
Pricing available on request
SIMATIC S7-1200, Digital output SM 1222:
- Product type designation: SM 1222, DQ 8x relay/2 A
- Permissible range, lower limit (DC): 20.4 V
- Permissible range, upper limit (DC): 28.8 V
Input current:
- From backplane bus 5 V DC, max.: 140 mA
- From load voltage L+, max.: 16.7 mA/relay coil
- Power loss, typ.: 5 W
Digital outputs:
- Number of digital outputs: 8
- In groups of: 1
- Short-circuit protection: No; to be provided externally
Ambient temperature during operation:
- Min.: -20 °C
- Max.: 60 °C; Number of simultaneously activated outputs: 4 (no adjacent points) at 60
°C horizontal or 50 °C vertical, 8 at 55 °C horizontal or 45 °C vertical - Horizontal installation, min.: -20 °C
- Horizontal installation, max.: 60 °C
- Vertical installation, min.: -20 °C
- Vertical installation, max.: 50 °C
- Permissible temperature change: 5°C to 55°C, 3°C / minute
Dimensions:
- Width: 70 mm
- Height: 100 mm
- Depth: 75 mm
Weights:
- Weight, approx.: 310 g
| SKU | 6ES7222-1XF32-0XB0 |
|---|---|
| Brand | Siemens |
