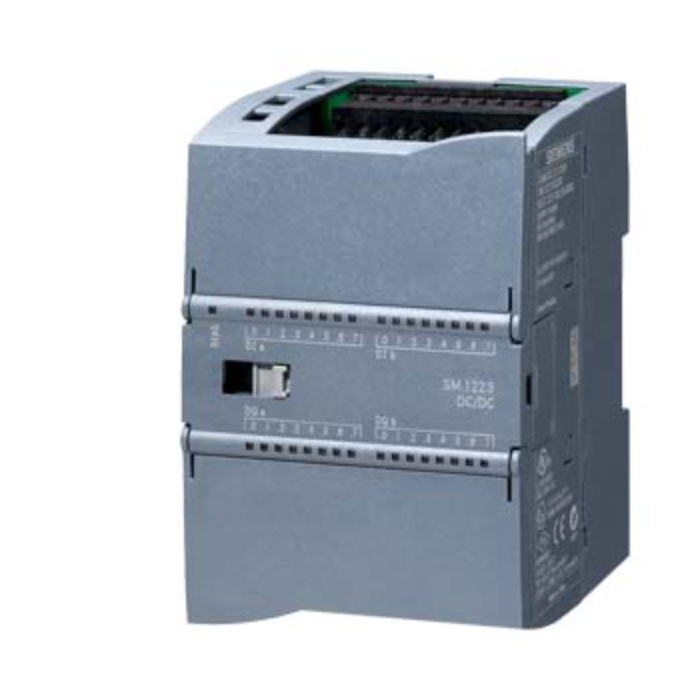

Siemens S7-1200 SM1223 Digital DI/DQ 16x24 V DC / 16x24 V DC 0.5 A
Pricing available on request
SIMATIC S7-1200 Digital I/O SM 1223:
- Product type designation: SM 1223, DI 16x24 V DC, DQ 16x24 V DC
- Rated value (DC): 24 V
- Permissible range, lower limit (DC): 20.4 V
- Permissible range, upper limit (DC): 28.8 V
- From backplane bus 5 V DC, max.: 185 mA
- From load voltage L+ (without load), max.: 4 mA; per channel
Supply voltage of the transmitters / header:
- Present: Yes
- Power loss, typ.: 4.5 W
Digital inputs:
- Number of digital inputs: 16
- In groups of: 2
- Input characteristic curve in accordance with IEC 61131, type 1: Yes
Ambient temperature during operation:
- Min.: -20 °C
- Max.: 60 °C
- Horizontal installation, min.: -20 °C
- Horizontal installation, max.: 60 °C
- Vertical installation, min.: -20 °C
- Vertical installation, max.: 50 °C
- Permissible temperature change: 5°C to 55°C, 3°C / minute
Dimensions:
- Width: 70 mm
- Height: 100 mm
- Depth: 75 mm
Weights:
- Weight, approx.: 310 g
| SKU | 6ES7223-1BL32-0XB0 |
|---|---|
| Brand | Siemens |
