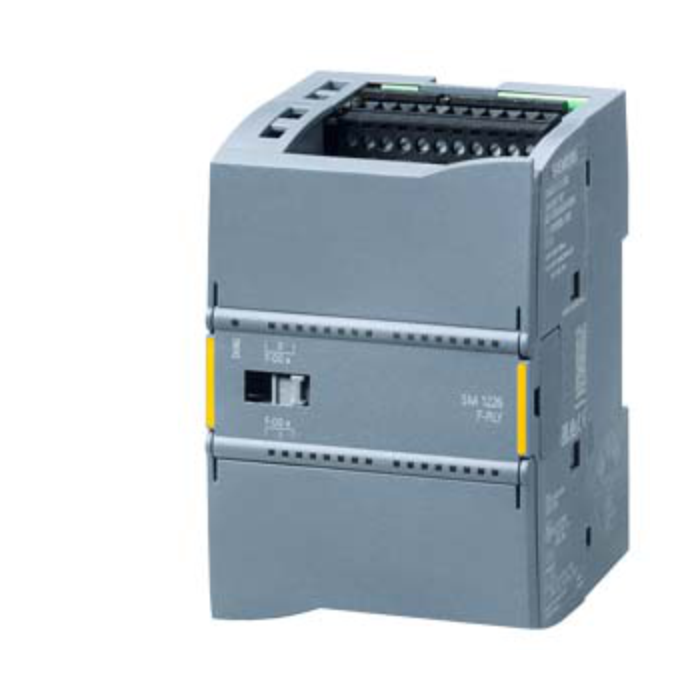

Siemens S7-1200 SM1226 Fail-safe F-DQ RLY 2x5 A 30 V DC/250 V AC
Pricing available on request
Description:
- This module is tailored for functional safety applications, offering 2 relay outputs with high switching capacity and compliance with PL e (ISO 13849-1) and SIL 3 (IEC 61508) standards.
- It’s ideal for actuating devices in safety-critical zones like cranes, elevators, and HVAC systems with emergency stop or fail-safe requirements.
Specifications:
- Electrical Characteristics:
- Supply Voltage Range: 20.4 V to 28.8 V DC.
- Backplane Bus Current: Max 120 mA.
- Power Loss: ~10 W.
- Load Voltage L+ Current: Max 300 mA.
- Digital Outputs (Relay Type):
- Number of Outputs: 2 (each with 2 circuits).
- Rated Output Voltage:
- DC: 5–30 V.
- AC: 5–250 V.
- Max Output Current:
- 5 A per circuit.
- 10 A total per module.
- Switching Frequency:
- Inductive Load:
- DC: 0.1 Hz (DC-13).
- AC: 2 Hz (AC-15).
- Resistive Load: 2 Hz.
- Cable Length: Up to 200 m (shielded or unshielded).
- Safety & Diagnostics:
- Safety Standards: PL e (ISO 13849-1), SIL 3 (IEC 61508).
- PFDavg (Low Demand Mode): < 1.00 × 10⁻⁵.
- PFH (High Demand Mode): < 4.00 × 10⁻⁹.
- Diagnostics LED: Yes (output status).
- Short-Circuit Protection: No.
- Environmental & Mechanical:
- Operating Temp: 0 to 55 °C.
- Storage Temp: –40 to +70 °C.
- Humidity: Up to 95% (non-condensing).
- Dimensions (W x H x D): 70 x 100 x 75 mm.
- Weight: ~300 g.
- Protection Rating: IP20.
- Mounting: DIN rail.
- Compliance & Approvals:
- CE, UL, FM, RCM, UKCA.
- TÜV-certified for hazardous locations.
- Functional Safety Type Examination Certificate.
- eClass: 27-24-22-04.
- ETIM Class: EC001419.
