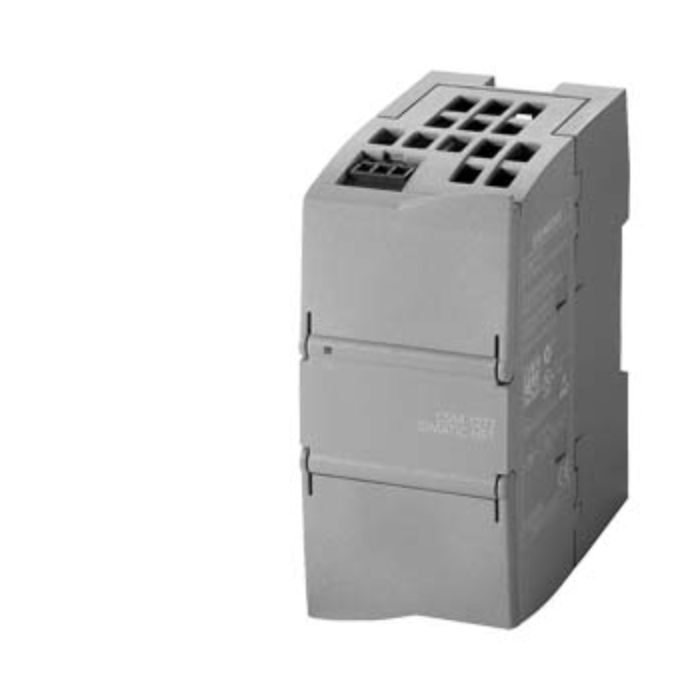

Siemens S7-1200 Compact Switch Module CSM 1277
Pricing available on request
Description:
- This module enables Ethernet connectivity for S7-1200 systems, supporting up to four RJ45 ports at 10/100 Mbit/s.
- It’s ideal for expanding industrial networks in cost-sensitive, space-constrained, or non-managed environments.
Specifications:
- Ports: 4 × RJ45 (10/100 Mbit/s).
- Power Supply: 24 V DC (19.2–28.8 V range).
- Power Loss: 1.6 W.
- Mounting Options: DIN rail, wall mount.
- Dimensions (W×H×D): 45 × 100 × 75 mm.
- Weight: 0.15 kg.
- Protection Class: IP20.
- Operating Temp Range: 0 to 60 °C.
- MTBF: 273 years (impressive longevity).
- Functional Highlights:
- Unmanaged Switch: Plug-and-play simplicity—no configuration needed.
- LED Diagnostics: Basic status indicators for quick troubleshooting.
- PRP Support: Operates in Parallel Redundancy Protocol networks.
- No Multiport Mirroring or Management: Streamlined for basic use cases.
- Compliance & Certifications:
- CE, UKCA, UL, RCM, RoHS.
- Hazardous Location: ATEX, IECEx, FM, CCC.
- Marine Classification: RINA only.
- EMC Standards: EN 61000-6-4 (Class A), EN 61000-6-2.
- Environmental Product Declaration (EPD): Yes.
- Global Warming Potential: 65.14 kg CO₂ eq (lifecycle total).
| SKU | 6GK7277-1AA10-0AA0 |
|---|---|
| Brand | Siemens |
