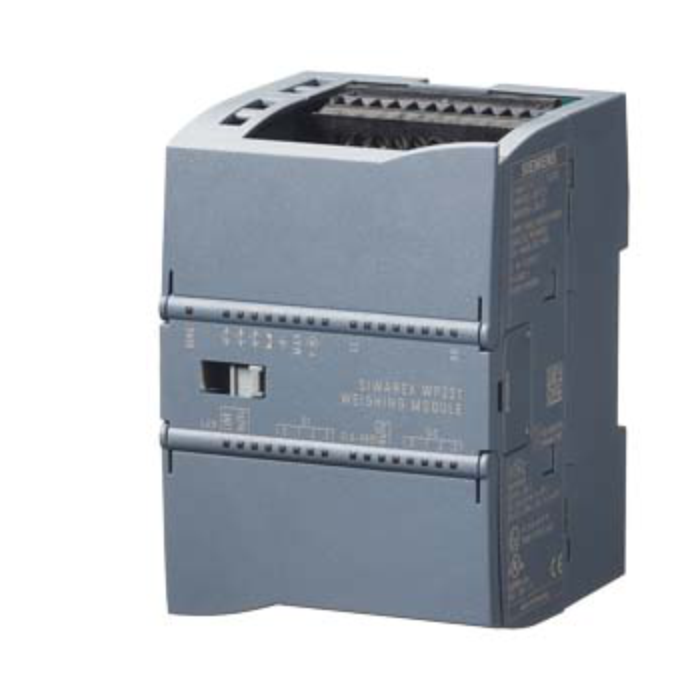

Specifications:

• Electrical & Power:
• Supply Voltage: 24 V DC (range: 19.2–28.8 V).
• Power Loss: ~4.5 W.
• Current Consumption: Max 200 mA.
• Short-Circuit & Reverse Polarity Protection: Yes.
• Digital I/O:
• Digital Inputs: 4 (parameterizable).
• Digital Outputs: 4 (short-circuit protected, 0.5 A max per channel).
• Analog Output: 1 (0–20 mA / 4–20 mA, 16-bit resolution).
• Cable Lengths:
• Shielded: 500 m (DI), 100 m (AO).
• Unshielded: 150 m (DI).
• Load Cell Interface:
• Type: Full-bridge strain gauge (1–4 mV/V).
• Connection: 4- or 6-wire.
• Resolution: ±1,000,000 parts per mV/V.
• Sampling Rate: 100 Hz.
• Measuring Ranges: ±1, ±2, ±4 mV/V.
• Cable Length: Up to 500 m (with Siemens cable).
• Communication Interfaces:
• RS485: For SIWATOOL V7, remote display, or junction box.
• Ethernet (RJ45): 1 port.
• Max RS485 Baud Rate: 115.2 kbps.
• RS485 Cable Length: Up to 1000 m (shielded).
• Diagnostics & Functions:
• Diagnostic Alarms: Yes (parameterizable).
• Hardware Interrupts: Yes.
• Substitute Values: Supported.
• Monitoring:
• Supply voltage.
• Wire-break.
• Short-circuit.
• LED Indicators: DIAG, input/output status, maintenance.
• Mechanical & Environmental:
• Dimensions (W x H x D): 70 x 100 x 75 mm.
• Weight: ~280 g.
• Mounting: DIN rail.
• Protection Rating: IP20.
• Operating Temp: –10 to +60 °C.
• Storage Temp: –40 to +70 °C.
• Humidity: Up to 95% (non-condensing).
• Vibration Resistance: IEC 60068-2-6 compliant.
• Shock Resistance: IEC 60068-2-27 compliant.
• Compliance & Approvals:
• CE, UL, FM, RCM, KC.
• ATEX, IECEx.
• Legal-for-trade capable (country-specific regulations apply).
• Environmental Product Declaration (EPD).
• Global Warming Potential: 43.1 kg CO₂ eq.
