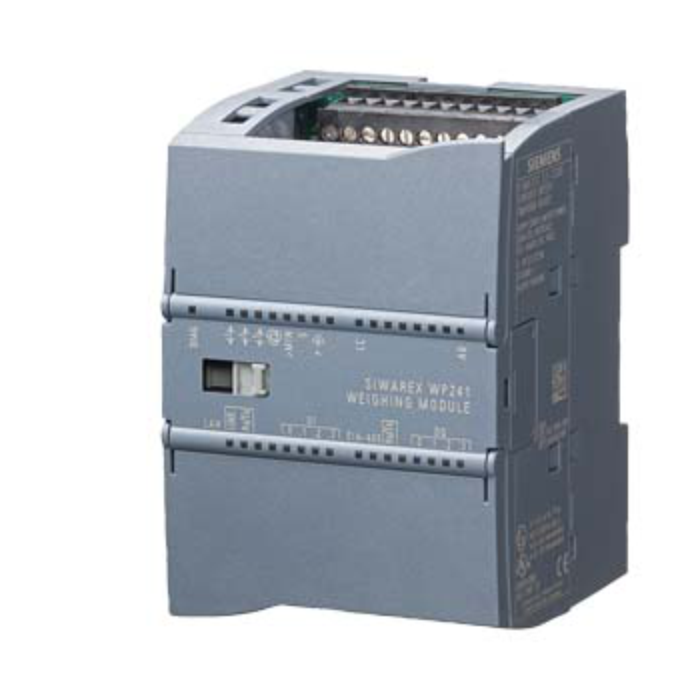

Siemens S7-1200 Technology modules SIWAREX WP241, Belt Scale
Pricing available on request
Description:
- This single channel weighing module is designed for continuous weighing applications, especially in bulk material handling.
- It integrates seamlessly with SIMATIC S7-1200 or operates standalone, offering high-speed sampling and robust diagnostics.
Specifications:
- Electrical & Power:
- Supply Voltage: 24 V DC (range: 19.2–28.8 V).
- Power Loss: ~4.5 W.
- Current Consumption: Max 200 mA.
- Protection: Short-circuit & reverse polarity.
- Digital & Analog I/O:
- Digital Inputs: 4 (parameterizable).
- Digital Outputs: 4 (short-circuit protected, 0.5 A/channel).
- Analog Output: 1 (0–20 mA / 4–20 mA, 16-bit resolution).
- Cable Lengths:
- Shielded: 500 m (DI), 100 m (AO).
- Unshielded: 150 m (DI).
- Load Cell Interface:
- Type: Full-bridge strain gauge (1–4 mV/V).
- Connection: 4- or 6-wire.
- Resolution: ±1,000,000 parts per mV/V.
- Sampling Rate: 100 Hz.
- Cable Length: Up to 500 m (with Siemens cable).
- Application Type: Automatic Weighing Instrument (BW).
- Communication Interfaces:
- RS485: For SIWATOOL V7, remote display, or junction box.
- Ethernet (RJ45): 1 port.
- Max RS485 Baud Rate: 115.2 kbps.
- RS485 Cable Length: Up to 1000 m (shielded).
- Diagnostics & Functions:
- Integrated Counter Function: Yes.
- Diagnostic Alarms: Yes (parameterizable).
- Hardware Interrupts: Yes.
- Monitoring:
- Supply voltage.
- Wire-break.
- Short-circuit.
- LED Indicators: DIAG, input/output status, maintenance.
- Mechanical & Environmental:
- Dimensions (W x H x D): 70 x 100 x 75 mm.
- Weight: ~280 g.
- Mounting: DIN rail.
- Protection Rating: IP20.
- Operating Temp: –10 to +60 °C.
- Storage Temp: –40 to +70 °C.
- Humidity: Up to 95% (non-condensing).
- Vibration Resistance: IEC 60068-2-6 compliant.
- Shock Resistance: IEC 60068-2-27 compliant.
- Compliance & Approvals:
- CE, UL, FM, RCM, KC, UKCA.
- ATEX, IECEx.
- Legal-for-trade capable (country-specific).
- Environmental Product Declaration (EPD).
- Global Warming Potential: 43.1 kg CO₂ eq.
