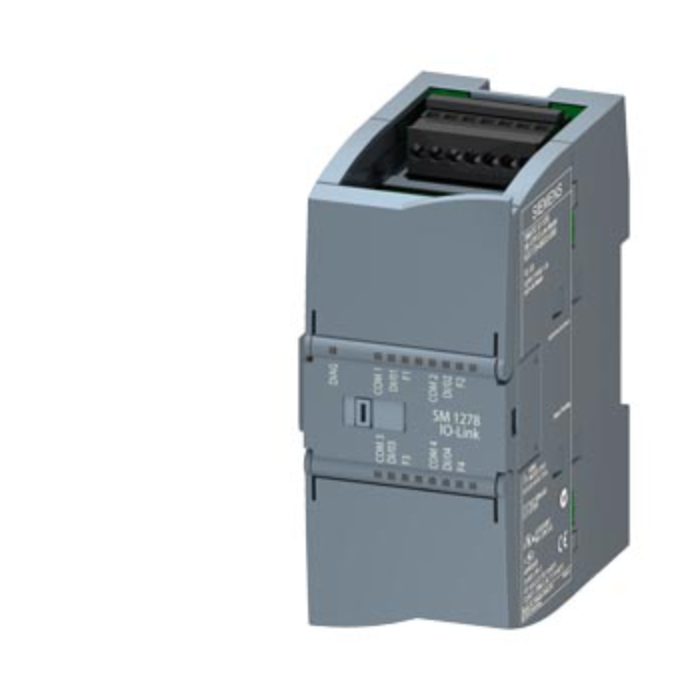

Siemens S7-1200 Technology modules SM 1278 IO-Link Master
Pricing available on request
Description:
- This module provides 4 IO-Link master channels, enabling seamless integration of smart sensors and actuators into your automation architecture.
- It’s designed for point-to-point communication, supporting diagnostics, parameterization, and real-time data exchange.
Specifications:
- Electrical Characteristics:
- Rated Supply Voltage: 24 V DC.
- Permissible Range: 20.4 V to 28.8 V DC.
- Power Loss (typical): 1 W.
- IO-Link Interface:
- Channels: 4 IO-Link master ports.
- Connection Method: Requires front connector.
- Communication: IO-Link protocol (point-to-point).
- Diagnostics Function: Yes (module and channel-level).
- Environmental & Mechanical:
- Dimensions (W x H x D): 45 x 100 x 75 mm.
- Weight: ~150 g.
- Mounting: DIN rail.
- Protection Rating: IP20.
- Operating Temp: –20 to +60 °C (horizontal).
- Vertical Install Temp: –20 to +50 °C.
- Storage Temp: –40 to +70 °C.
- Humidity: Up to 95% (non-condensing).
- Free Fall Resistance: 0.3 m (packaged).
- Certifications & Approvals:
- CE, UL, CSA, FM, RCM, KC, Marine Approval.
- Hazardous Location Use: ATEX, IECEx, UL.
- Classification:
- eClass: 27-24-22-08.
- ETIM: EC001423.
- UNSPSC: 32-15-17-05.
| SKU | 6ES7278-4BD32-0XB0 |
|---|---|
| Brand | Siemens |
