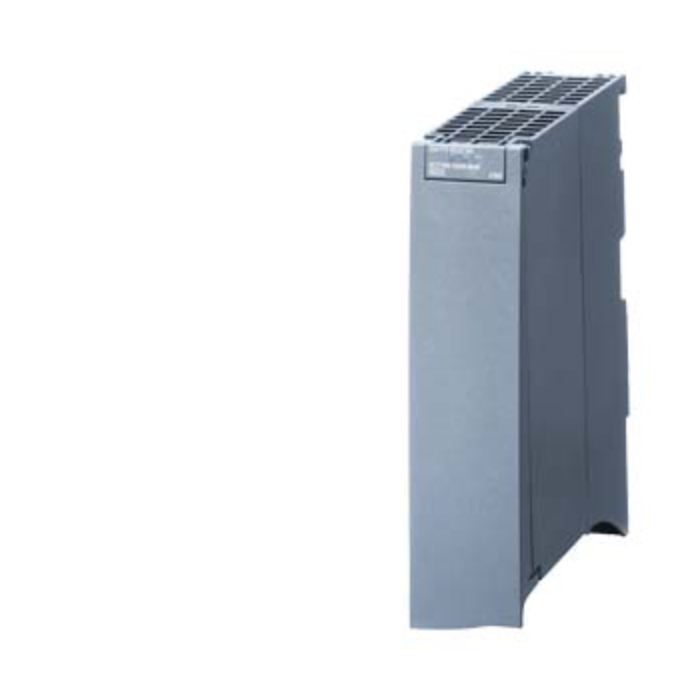

Siemens S7-1500 CM PtP RS 232 HF communication modules
Pricing available on request
Description:
- This module enables point-to-point serial communication via RS232, supporting multiple protocols including Freeport, 3964(R), USS, and Modbus RTU (Master/Slave).
- It’s ideal for integrating legacy devices, weighing systems, barcode scanners, or third-party controllers into S7-1500 architectures.
Specifications:
- Interface Type: RS232 (9-pin D-sub connector).
- Max Baud Rate: 115.2 kbit/s.
- Supported Protocols: Freeport, 3964(R), USS, Modbus RTU.
- Modbus RTU Roles: Master and Slave.
- Telegram Buffer: 8 kB (up to 255 telegrams).
- Address Space: 8 bytes input.
- RS232 Auxiliary Signals: RTS, CTS, DTR, DSR, RI, DCD.
- Isolation Test Voltage: 707 V DC.
- Power Loss: ~0.6 W.
- Backplane Bus Consumption: ~0.75 W.
- Dimensions (W×H×D): 35 × 147 × 127 mm.
- Weight: ~220 g.
- Environmental & Compliance:
- Operating Temp: 0 °C to +60 °C (horizontal); 0 °C to +40 °C (vertical).
- Altitude: Up to 5000 m.
- Humidity: Tested with condensation (IEC 60068-2-38).
- Approvals: CE, UL, ATEX, IECEx, DNV, RCM, KC, CCC.
- Eco Profile: Siemens EcoTech certified.
| SKU | 6ES7541-1AD00-0AB0 |
|---|---|
| Brand | Siemens |
