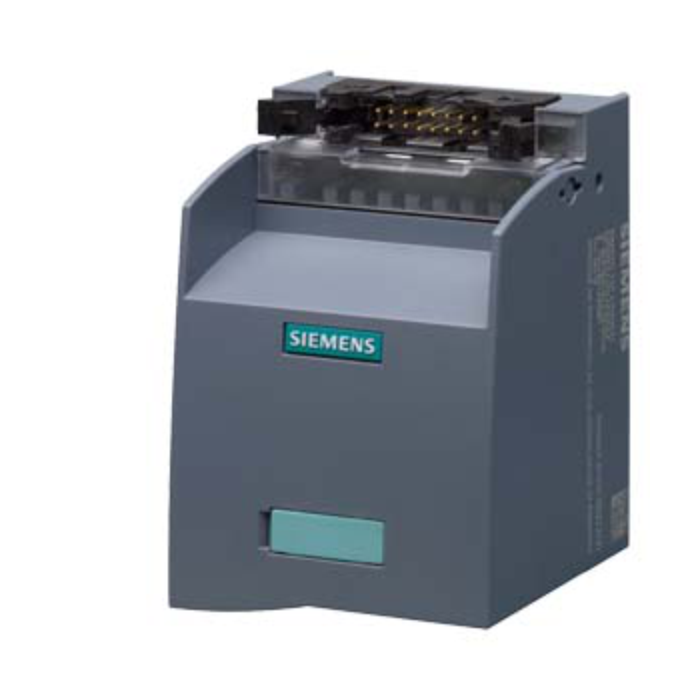

Siemens S7-1500 Connection modules for digital output modules 2A; push-in terminals without LEDs
Pricing available on request
Description:
- This is a TP2 connection module designed for 2-wire digital output configurations in SIMATIC S7-300/1500 systems.
- It supports 8 output channels, each rated for up to 2 A, and includes 2×6 multiplication terminals for shared potential distribution.
- The absence of LED indicators makes it ideal for compact installations where visual diagnostics are not required.
Specifications:
- Module Type: TP2 (2A Output Module).
- Terminal Type: Push-in terminals (no LED).
- Number of Channels: 8 (digital outputs).
- Output Current per Channel: 2 A.
- Rated Voltage: 24 V DC nominal / 50 V DC max.
- Max Current per Pin: 1 A.
- Total Current: 4 A.
- Multiplication Terminals: 2×6 M terminals.
- Connector Interface: 16-pole IDC connector with strain relief.
- Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
- Mounting: DIN rail (35 mm or 15 mm), any position.
- Dimensions (W × H × D): 57 × 76 × 60 mm.
- Ambient Temperature (Operation): 0 °C to +60 °C.
- Ambient Temperature (Storage): –40 °C to +70 °C.
- Combustibility Class (UL 94): V1.
- Pollution Degree / Overvoltage Category: 2 / II.
- Approvals: cULus certified.
- Net Weight: ~100 g.
- Environmental Product Declaration: Yes (GWP: 14.6 kg CO₂ eq total).
| SKU | 6ES7924-0BB20-0AC0 |
|---|---|
| Brand | Siemens |
