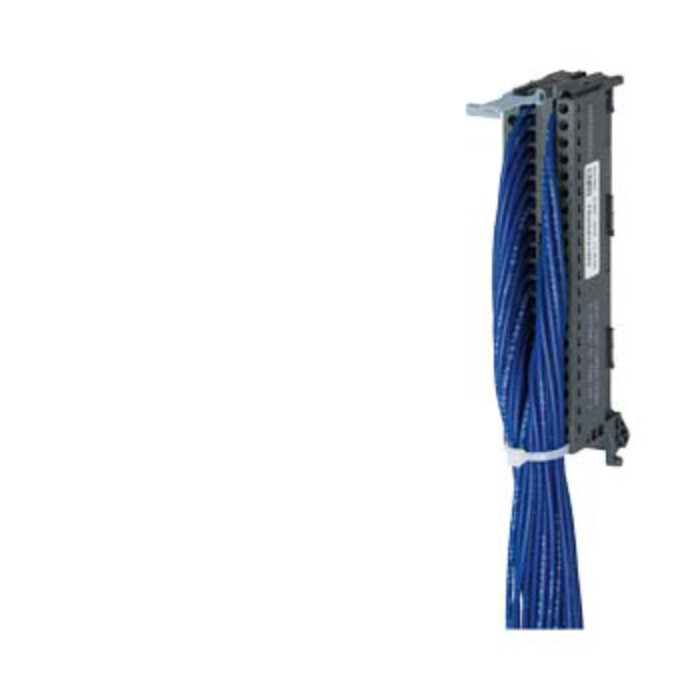

Front connector for SIMATIC S7-1500 40 pole Screw version L = 2.5 m
Pricing available on request
Description:
- This is a 40-pole front connector with 40 individual halogen-free wires, each marked and pre-terminated for direct connection to SIMATIC S7-1500 digital I/O modules.
- The cable uses H05Z-K type conductors, each with a 0.5 mm² cross-section, and comes in a screw-terminal version with a total length of 2.5 meters—ideal for compact layouts where low smoke and toxicity are critical.
Specifications:
- Product Type: Front Connector with Halogen-Free Cores.
- Cable Length: 2.5 meters.
- Connector Type: 40-pole (6ES7592-1AM00-0XB0).
- Core Type: H05Z-K (halogen-free).
- Conductor Cross-Section: 0.5 mm².
- Terminal Type: Screw-type.
- Number of Channels: 40.
- Marking: Numbered 1 to 40 (white adapter contact).
- Rated Voltage: 24 V DC (max 30 V DC).
- Max Current (all cores loaded): 1.5 A.
- Cable Sheath Material: Halogen-free polyolefin.
- Cable Sheath Colour: Blue (RAL 5010).
- Outer Diameter: 2.2 mm (bundled cores).
- Net Weight: ~1.28 kg.
- Ambient Temperature (Operation): 0 °C to +60 °C.
- Ambient Temperature (Storage): –15 °C to +60 °C.
- Suitability: Digital signal transmission only.
- Approvals: General product approval (no cULus).
| SKU | 6ES7922-5BC50-0HC0 |
|---|---|
| Brand | Siemens |
