Siemens S7-1500 Core type UL/CSA-certified (0.5mm² with screw connection) (pins 1-20); 3.2 m
Pricing available on request
Description:

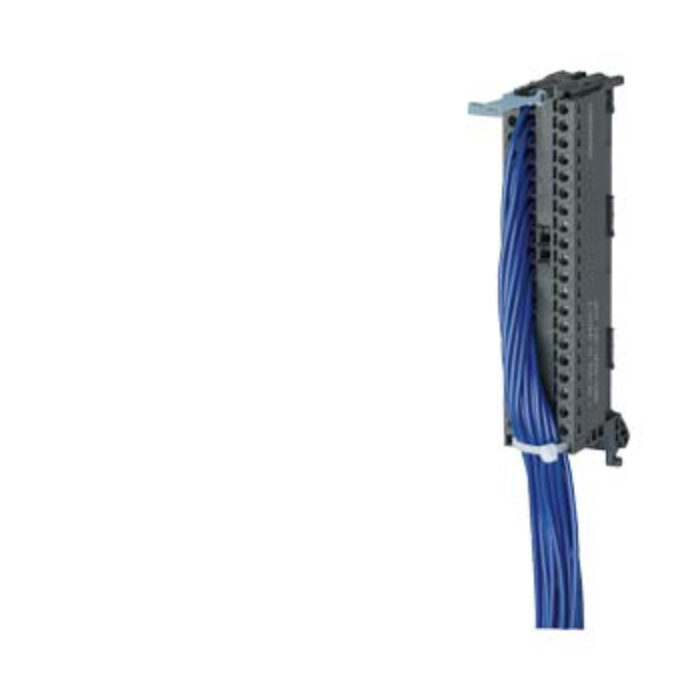

- This is a 40-pole front connector populated with 20 UL/CSA-certified single cores, each pre-marked and pre-terminated for direct connection to SIMATIC S7-1500 digital I/O modules.
- The cable uses multi-norm braid conductors with a 0.5 mm² cross-section and comes in a screw-terminal version with a total length of 3.2 meters—perfect for short-to-mid distance routing in compliance-driven environments.
Specifications:
- Cable Length: 3.2 meters.
- Connector Type: 40-pole (6ES7592-1AM00-0XB0).
- Core Type: UL/CSA certified multi-norm braid.
- Conductor Cross-Section: 0.5 mm².
- Terminal Type: Screw-type.
- Number of Channels: 20.
- Marking: Numbered 1 to 20 (white adapter contact).
- Rated Voltage: 24 V DC (max 30 V DC).
- Max Current (all cores loaded): 1.5 A.
- Cable Sheath Material: PVC.
- Cable Sheath Colour: Blue (RAL 5010).
- Outer Diameter: 2.2 mm (bundled cores).
- Net Weight: ~0.94 kg.
- Ambient Temperature (Operation): 0 °C to +60 °C.
- Ambient Temperature (Storage): –30 °C to +70 °C.
- Suitability: Digital signal transmission only.
- Approvals: UL/CSA cable type (connector not cULus).
| SKU | 6ES7922-5BD20-0UB0 |
|---|---|
| Brand | Siemens |
